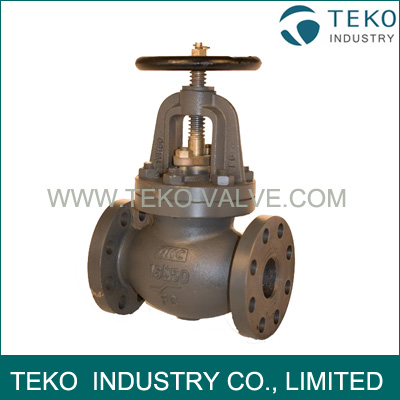

High Pressure Marine Cast Iron Globe Valve
High Pressure Marine Cast Iron Globe Valve
- Availability: In Stock
- Product Model: JIS F7309
$0.00
Ex Tax: $0.00
High Pressure Marine Cast Iron Globe Valve
Main Material
1 - Body - Cast Iron - FC20
2 - Seat - Bronze - BC6
3 - Disc - Bronze - BC6
4 - Stem - Brass - C3771BD

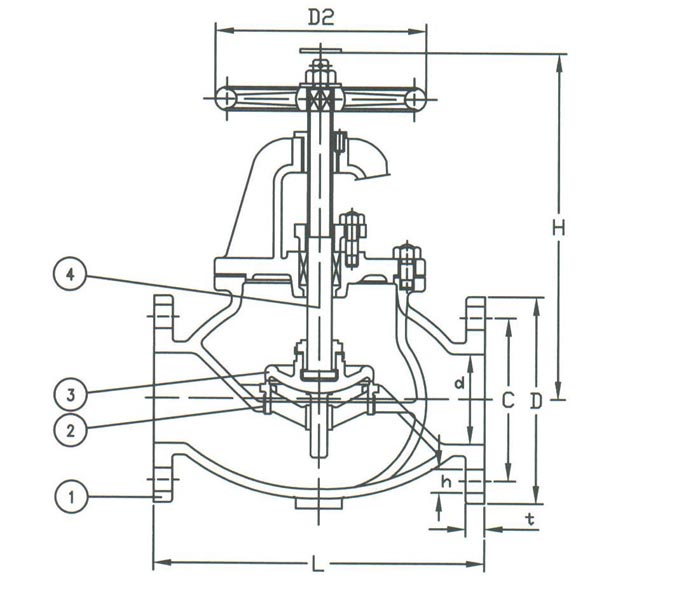

Drawing & Dimensions of Cast Iron Globe Valve
|
Item NO. |
Size |
L (mm) |
D (mm) |
C (mm) |
Number of Holes |
h |
|
F7309-050 |
50 |
220 |
155 |
155 |
8 |
19 |
|
F7309-065 |
65 |
270 |
175 |
175 |
8 |
19 |
|
F7309-080 |
80 |
300 |
200 |
200 |
8 |
23 |
|
F7309-100 |
100 |
350 |
225 |
225 |
8 |
23 |
|
F7309-125 |
125 |
430 |
270 |
270 |
8 |
25 |
|
F7309-150 |
150 |
500 |
305 |
305 |
12 |
25 |
|
F7309-200 |
200 |
570 |
350 |
350 |
12 |
25 |
