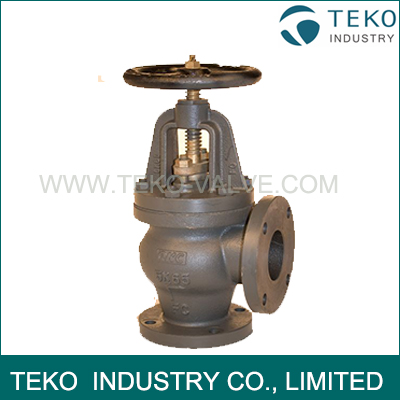

Cast Iron Material Bolted Bonnet JIS F7306 Manual Operated Marine Stop Check Valve
- Availability: In Stock
- Product Model: JIS F 7306
Cast Iron Material Bolted Bonnet JIS F7306 Manual Operated Marine Stop Check Valve
Material Sheet
|
Parts |
Material |
Parts |
Material |
|
Body |
FC200 |
Hexagon Nut |
SS 400 |
|
Bonnet |
FC200 |
Split Pin |
C2600W |
|
Disc |
BC6 |
Lock Pin |
SS400 |
|
Valve Seat |
BC6 |
Disc Lock Washer |
C2600P |
|
Disc Nut |
BC6 |
Stud |
SS400 |
|
Screwed Bonnet Bush |
BC6 |
Stem |
C3711BD |
|
Seat Ring |
BC6 |
Packing |
JIS F7102 |
|
Packing Gland |
BC6 |
Handwheel |
FC200 |

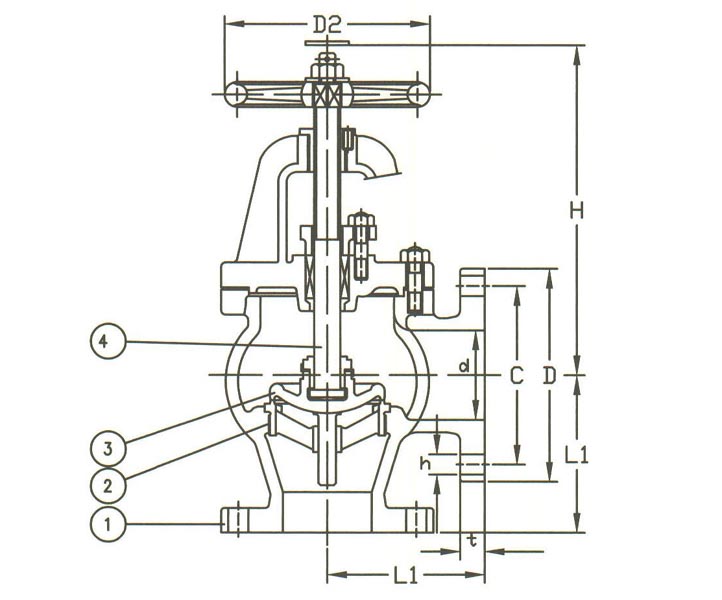

Dimensions
|
MODEL NO. |
Face to face |
Flange diam. |
Flange Pitch |
Flange Hole |
Weight |
|
|
L(mm) |
D(mm) |
C(mm) |
n*d(mm) |
W(kgs) |
|
F7306 5K65 |
115 |
155 |
130 |
4×Ф15 |
18.2 |
|
F7306 5K80 |
130 |
180 |
145 |
4×Ф19 |
23.4 |
|
F7306 5K100 |
150 |
200 |
165 |
8×Ф19 |
33.7 |
|
F7306 5K125 |
170 |
235 |
200 |
8×Ф19 |
46.2 |
|
F7306 5K150 |
190 |
265 |
230 |
8×Ф19 |
63.4 |
|
F7306 5K200 |
220 |
320 |
280 |
8×Ф23 |
105 |
|
F7306 5K250 |
275 |
385 |
345 |
12×Ф23 |
176 |
|
F7306 5K300 |
310 |
430 |
390 |
12×Ф23 |
243 |
|
F7306 5K350 |
360 |
480 |
435 |
12×Ф25 |
327 |
|
F7306 5K400 |
395 |
540 |
495 |
16×Ф25 |
459 |
Test Pressure
|
Rating |
JIS 5K |
JIS 10K |
JIS16K |
||
|
|
Up to 300A |
350A to 400A |
Up to 200A |
Over 250A |
50A to 200A |
|
|
Globe/Globe Check (SDNR) |
||||
|
Shell Mpa(Kg/cm2) |
1.03(10.5) |
0.88(9.0) |
2.06(21.0) |
1.47(15.0) |
3.24(33.0) |
