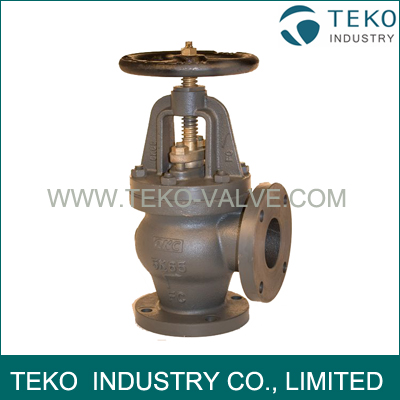

SDNR Angle Valve
SDNR Angle Valve
- Availability: In Stock
- Product Model: JIS F7354
$0.00
Ex Tax: $0.00
JIS F7354 SDNR Angle Valve
Main Materials:
1 - Body - Cast Iron - FC20
2 - Seat - Bronze - BC6
3 - Disc - Bronze - BC6
4 - Stem - Brass - C3771BD
Applicable Scope For SDNR Angle Valve
Fuel Oil Piping,Lubricating Oil Piping, Water Piping and steam piping at temperatures 205℃ or less.

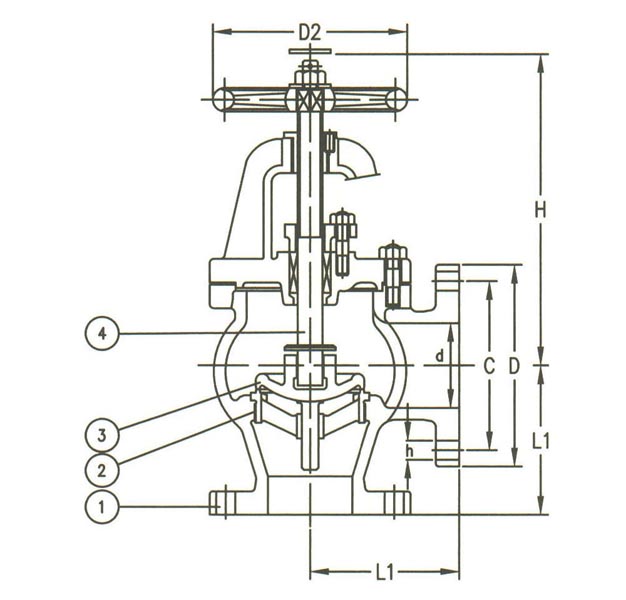

Drawing & Dimensions
|
MODEL No. |
Face to face |
Flange diam. |
Flange Pitch |
Flange Hole |
Weight |
|
|
L(mm) |
D(mm) |
C(mm) |
n*d(mm) |
W(kgs) |
|
F7354 5K50 |
100 |
130 |
105 |
4×Ф15 |
12.9 |
|
F7354 5K65 |
115 |
155 |
130 |
4×Ф15 |
18.2 |
|
F7354 5K80 |
130 |
180 |
145 |
4×Ф19 |
23.3 |
|
F7354 5K100 |
150 |
200 |
165 |
8×Ф19 |
33.5 |
|
F7354 5K125 |
170 |
235 |
200 |
8×Ф19 |
46.5 |
|
F7354 5K150 |
190 |
265 |
230 |
8×Ф19 |
64 |
|
F7354 5K200 |
220 |
320 |
280 |
8×Ф23 |
104 |
|
F7354 5K250 |
275 |
385 |
345 |
12×Ф23 |
175 |
|
F7354 5K300 |
310 |
430 |
390 |
12×Ф23 |
243 |
|
F7354 5K350 |
360 |
480 |
435 |
12×Ф25 |
336 |
|
F7354 5K400 |
395 |
540 |
495 |
16×Ф25 |
459 |
