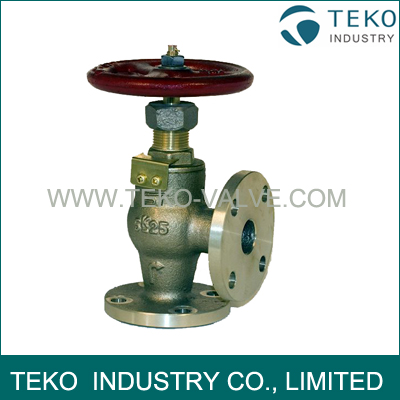

JIS Standard Marine Valves
JIS Standard Marine Valves
- Availability: In Stock
- Product Model: JIS F7352
$0.00
Ex Tax: $0.00
JIS Standard Marine Valves
Main Materials:
1 - Body - Bronze - BC6
2 - Disc - Bronze - BC6
3 - Stem - Brass - C3771BD
Applicable Scope For JIS Standard Marine Valves
Fuel Oil Piping,Lubricating Oil Piping and Water Piping at temperatures 120℃ or less.

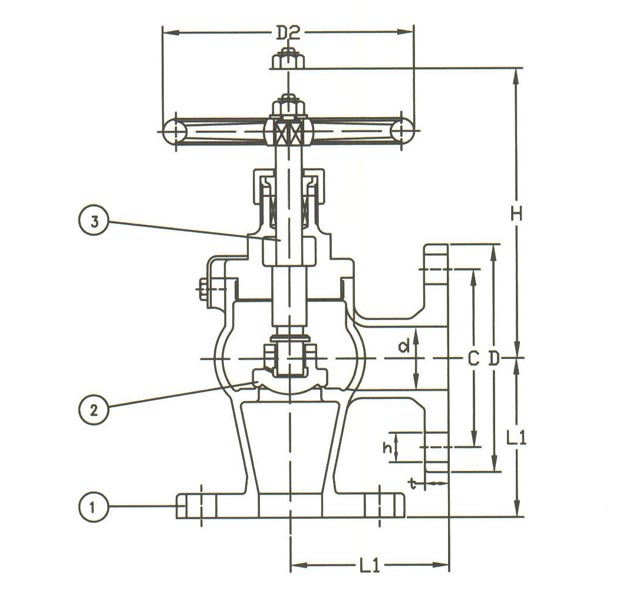

Drawing & Dimensions
|
MODEL NO. |
Face to face |
Flange diam. |
Flange Pitch |
Flange Hole |
Weight |
|
|
L(mm) |
D(mm) |
C(mm) |
n*d(mm) |
W(kgs) |
|
F7352 5K15 |
55 |
80 |
60 |
4×Ф12 |
1.92 |
|
F7352 5K20 |
60 |
85 |
65 |
4×Ф12 |
2.64 |
|
F7352 5K25 |
65 |
95 |
75 |
4×Ф12 |
3.3 |
|
F7352 5K32 |
80 |
115 |
90 |
4×Ф15 |
4.63 |
|
F7352 5K40 |
85 |
120 |
95 |
4×Ф15 |
5.81 |
