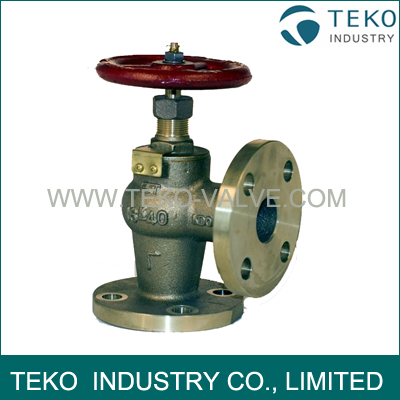

JIS Standard 16K Bronze Globe Valve
JIS Standard 16K Bronze Globe Valve
- Availability: In Stock
- Product Model: JIS F7410
$0.00
Ex Tax: $0.00
JIS Standard 16K Bronze Globe Valve
Main Materials:
1 - Body - Bronze - BC6
2 - Disc - Bronze - BC6
3 - Stem - Brass - C3771BD
Applicable Scope For Bronze Globe Valve
Fuel Oil Piping,Lubricating Oil Piping and Water Piping at temperatures 120℃ or less.

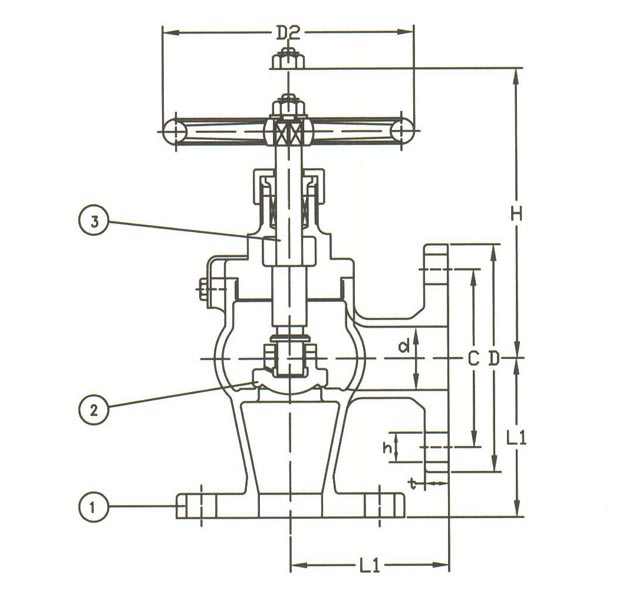

Drawing & Dimensions
|
MODEL No. |
Face to face |
Flange diam. |
Flange Pitch |
Flange Hole |
Weight |
|
|
L(mm) |
D(mm) |
C(mm) |
n*d(mm) |
W(kgs) |
|
F7410 16K15 |
70 |
95 |
70 |
4×Ф15 |
2.67 |
|
F7410 16K20 |
75 |
100 |
75 |
4×Ф15 |
3.56 |
|
F7410 16K25 |
85 |
125 |
90 |
4×Ф19 |
5.02 |
|
F7410 16K32 |
95 |
135 |
100 |
4×Ф19 |
6.58 |
|
F7410 16K40 |
100 |
140 |
105 |
4×Ф19 |
7.95 |
