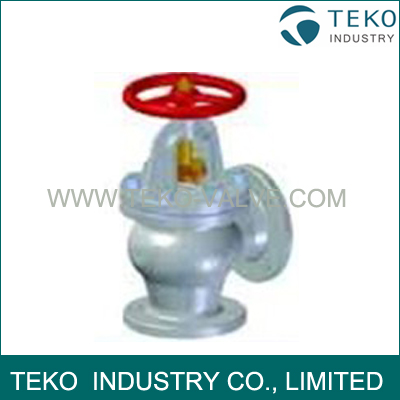

JIS 10K Cast Steel SDNR Angle Valve
JIS 10K Cast Steel SDNR Angle Valve
- Availability: In Stock
- Product Model: JIS F7472
$0.00
Ex Tax: $0.00
Good Quality JIS 10K Cast Steel SDNR Angle Valve
Main Materials:
1 - Body - Cast Steel - SC49
2 - Seat - Stainless Steel - SCS2
3 - Disc - Stainless Steel - SCS2
4 - Stem - Stainless Steel - SUS403
Applicable Scope For Cast Steel SDNR Angle Valve
Fuel Oil Piping,Lubricating Oil Piping, Water Piping and steam piping at temperatures 300℃ or less.
Dimensions
|
MODEL |
Face to face |
Flange diam. |
Flange Pitch |
Flange Hole |
Weight |
|
|
L(mm) |
D(mm) |
C(mm) |
n*d(mm) |
W(kgs) |
|
F7472 10K50 |
120 |
155 |
120 |
4×Ф19 |
16.3 |
|
F7472 10K65 |
130 |
175 |
140 |
4×Ф19 |
23.1 |
|
F7472 10K80 |
140 |
185 |
150 |
8×Ф19 |
25.3 |
|
F7472 10K100 |
160 |
210 |
175 |
8×Ф19 |
37 |
|
F7472 10K125 |
180 |
250 |
210 |
8×Ф23 |
56.6 |
|
F7472 10K150 |
205 |
280 |
240 |
8×Ф23 |
77.1 |
|
F7472 10K200 |
230 |
330 |
290 |
12×Ф23 |
116 |
|
F7472 10K250 |
290 |
400 |
355 |
12×Ф25 |
188 |
|
F7472 10K300 |
320 |
445 |
400 |
16×Ф25 |
256 |
