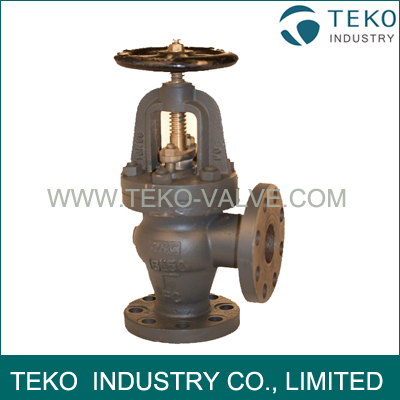

Cast Iron Stop Check Valve
Cast Iron Stop Check Valve
- Availability: In Stock
- Product Model: JIS F7378
$0.00
Ex Tax: $0.00
Cast Iron Stop Check Valve
Main Materials:
1 - Body - Cast Iron - FC20
2 - Seat - Bronze - BC6
3 - Disc - Bronze - BC6
4 - Stem - Brass - C3771BD
Applicable Scope For Cast Iron Stop Check Valve
Fuel Oil Piping, Lubricating Oil Piping, Water Piping and steam piping at temperatures 205℃ or less.

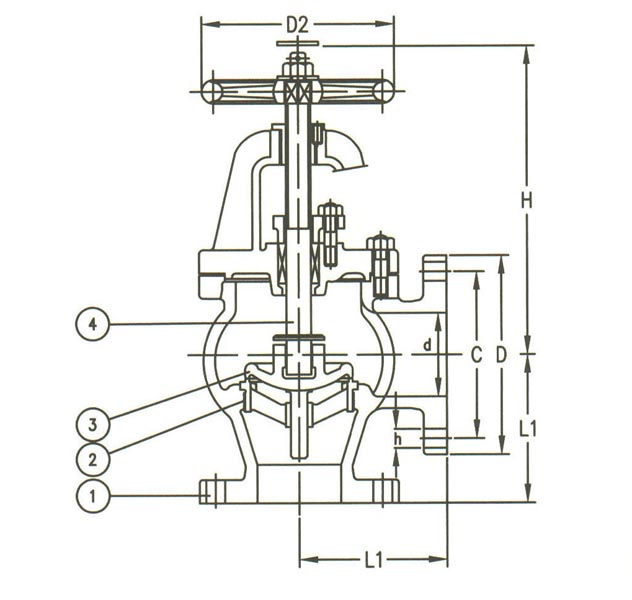

Drawing & Dimensions
|
MODEL NO. |
Face to face |
Flange diam. |
Flange Pitch |
Flange Hole |
Weight |
|
|
L(mm) |
D(mm) |
C(mm) |
n*d(mm) |
W(kgs) |
|
F7378 16K50 |
120 |
155 |
120 |
8×Ф19 |
18 |
|
F7378 16K65 |
130 |
175 |
140 |
8×Ф19 |
25 |
|
F7378 16K80 |
150 |
200 |
160 |
8×Ф23 |
35.7 |
|
F7378 16K100 |
170 |
225 |
185 |
8×Ф23 |
49.2 |
|
F7378 16K125 |
200 |
270 |
225 |
8×Ф25 |
76.1 |
|
F7378 16K150 |
225 |
305 |
260 |
12×Ф25 |
103 |
|
F7378 16K200 |
250 |
350 |
305 |
12×Ф25 |
155 |
