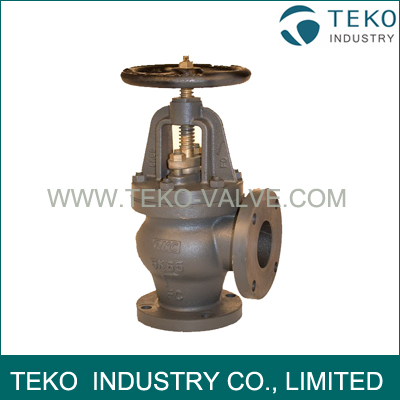

Cast Iron SDNR Angle Valve
Cast Iron SDNR Angle Valve
- Availability: In Stock
- Product Model: JIS F7376
$0.00
Ex Tax: $0.00
Cast Iron SDNR Angle Valve
Main Materials:
1 - Body - Cast Iron - FC20
2 - Seat - Bronze - BC6
3 - Disc - Bronze - BC6
4 - Stem - Brass - C3771BD
Applicable Scope For Cast Iron SDNR Angle Valve
Fuel Oil Piping, Lubricating Oil Piping, Water Piping and steam piping at temperatures 205℃ or less.

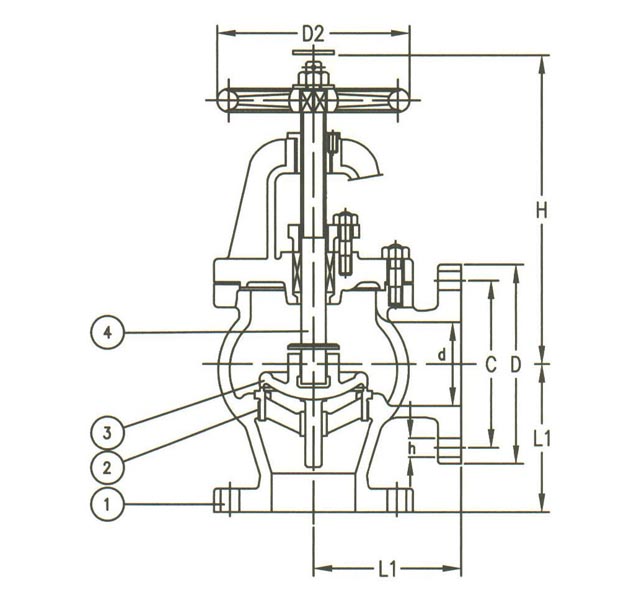

Drawing & Dimensions
|
MODEL NO. |
Face to face |
Flange diam. |
Flange Pitch |
Flange Hole |
Weight |
|
|
L(mm) |
D(mm) |
C(mm) |
n*d(mm) |
W(kgs) |
|
F7376 10K50 |
120 |
155 |
120 |
4×Ф19 |
18.2 |
|
F7376 10K65 |
130 |
175 |
140 |
4×Ф19 |
25.3 |
|
F7376 10K80 |
140 |
185 |
150 |
8×Ф19 |
27.5 |
|
F7376 10K100 |
160 |
210 |
175 |
8×Ф19 |
40.6 |
|
F7376 10K125 |
180 |
250 |
210 |
8×Ф23 |
69.8 |
|
F7376 10K150 |
205 |
280 |
240 |
8×Ф23 |
81.2 |
|
F7376 10K200 |
230 |
330 |
290 |
12×Ф23 |
124 |
|
F7376 10K250 |
290 |
400 |
355 |
12×Ф25 |
211 |
|
F7376 10K300 |
320 |
445 |
400 |
16×Ф25 |
293 |
