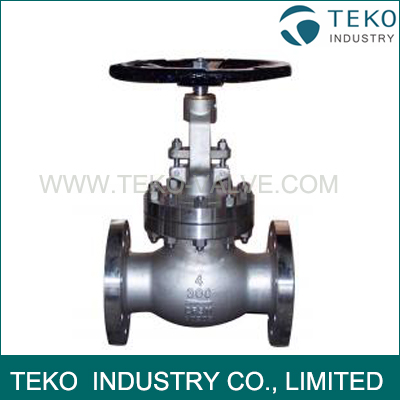

Manual Operation Stainless Steel CF8 CF8M BS1873 Globe Valve Stop Valve
- Availability: In Stock
- Product Model: J41Y
Manual Operation Stainless Steel CF8 CF8M BS1873 Globe Valve Stop Valve
Globe Valve
A globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body.
Features:
- Various Operation Options
- OS & Y Design
- Flange, RTJ, BW and other connection for options
- Plug type disc
- Live load packing to ensure the good sealing.
- Bolted bonnet as standard. Pressure seal and weld bonnet for high pressure service.
- Material: WCB, CF8, CF8M etc

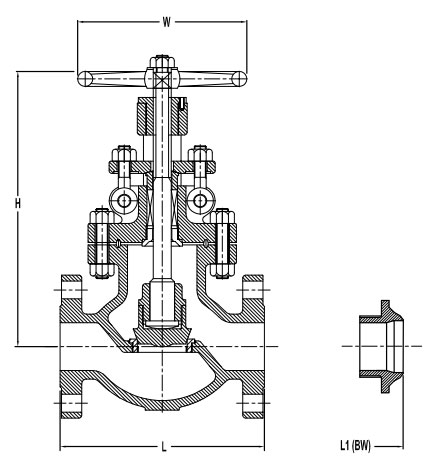

Dimension:
150Lb
|
Sizes |
L / L1 |
H (Open) |
W |
|
2" |
8 (203) |
13-3/8 (340) |
8-7/8 (225) |
|
2-1/2" |
8-1/2 (216) |
14-1/2 (368) |
8-7/8 (225) |
|
3" |
9-1/2 (241) |
16-1/2 (419) |
11-7/8 (302) |
|
4" |
11-1/2 (292) |
17-3/8 (441) |
12-3/4 (325) |
|
5" |
14 (356) |
24 (610) |
12-3/4 (325) |
|
6" |
16 (406) |
24 (610) |
17-3/4 (451) |
|
8" |
19-1/2 (495) |
26-3/4 (679) |
21-5/8 (549) |
|
10" |
24-1/2 (622) |
30 (762) |
30 (762) |
|
12" |
27-1/2 (699) |
33-7/8 (860) |
30 (762) |
|
14" |
31 (787) |
56 (1422) |
31-1/2 (800) |
|
16" |
36 (914) |
64 (1626) |
35-1/2 (902) |
|
GEAR OPERATOR RECOMMENDED FOR SIZE 10" AND ABOVE |
|||
300Lb
|
Sizes |
L / L1 |
H (Open) |
W |
|
2" |
10-1/2 (267) |
13-3/8 (340) |
9 (229) |
|
2-1/2" |
11-1/2 (292) |
15-3/8 (390) |
9 (229) |
|
3" |
12-1/2 (318) |
16-1/2 (419) |
13 (330) |
|
4" |
14 (356) |
19-3/8 (492) |
14 (356) |
|
5" |
15-3/4 (400) |
21-1/2 (546) |
15-3/4 (400) |
|
6" |
17-1/2 (445) |
24-3/8 (619) |
17-3/4 (451) |
|
8" |
22 (559) |
31-1/4 (794) |
22 (559) |
|
10" |
24-1/2 (622) |
45 (1143) |
34 (864) |
|
12" |
28 (711) |
49 (1245) |
34 (864) |
|
GEAR OPERATOR RECOMMENDED FOR SIZE 8" AND ABOVE |
|||
