Live Load Packing Gland BS 1873 Globe Valve , BB Bolted Bonnet Globe Valve For Chemical Plant
- Availability: In Stock
- Product Model: J41H

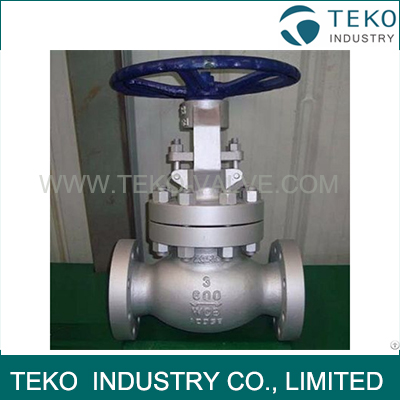

Live Load Packing Gland BS 1873 Globe Valve , BB Bolted Bonnet Globe Valve For Chemical Plant
About Globe Valve
A Globe valves is a linear motion valve and are primarily designed to stop, start and regulate flow. The disk of a Globe valve can be totally removed from the flowpath or it can completely close the flowpath.
Conventional Globe valves may be used for isolation and throttling services. Although these valves exhibit slightly higher pressure drops than straight=through valves (e.g., gate, plug, ball, etc.), they may be used where the pressure drop through the valve is not a controlling factor.
Globe valves are extensively employed to control flow. The range of flow control, pressure drop, and duty must be considered in the design of the valve to avert premature failure and to assure satisfactory service. Valves subjected to high-differential pressure-throttling service require specially designed valve trim.
Product Information
| Name | Globe Valve |
| Model Number: | J61H |
| Standard or Nonstandard: | API 602 |
| Structure: | Plug shape disc |
| Pressure: | 150LB-1500Lb |
| Power: | Handwheel operated |
| Material: | Cast Steel |
| Temperature of Media: | —29 Deg. C ~ 425 Deg. C |
| Media: | Crude Oil, Natural Gas, etc |
| Port Size: | 1"~12" |
| Application: | water, steam, oil, etc |
| OEM: | We offer OEM service |
| Special Requirement: | Tailor made can be provided |
| Description: | API 602 cast steel Bolted Bonnet globe valve |
| Wall thickness: | ASME B16.34 |
| Painting: | Phosphated, or Acid Pickling |
| Applicalbe for: | Turbine steam in the power plant |
| Other requirement: | NACE MR 01 75 |
| Fugitive Emission Test: | can be provided upon request |
Body Design of BS1873 Globe Valve
T pattern Globe Valve
Angle Pattern Globe Valve
Y pattern Globe Valve
Flow direction of Globe valves
For applications with low temperature, Globe valves are normally installed so that the pressure is under the disc. This contributes an easy operation and helps protect the packing.
For applications with high temperature steam service, Globe valves are installed so that the pressure is above the disk. Otherwise, the stem will contract upon cooling and tend to lift the disk off the seat
Typical Applications of Globe valves
The following are some of the typical applications of Globe valves:
- Cooling water systems where flow needs to be regulated
- Fuel oil system where flow is regulated and leaktightness is of importance
- High-point vents and low-point drains when leaktightness and safety are major considerations
- Feedwater, chemical feed, condenser air extraction, and extraction drain systems
- Boiler vents and drains, main steam vents and drains, and heater drains
- Turbine seals and drains
