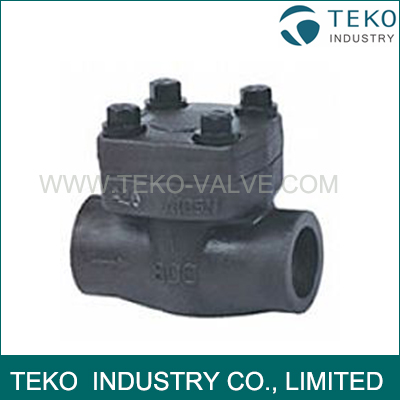

Fire Safe 800 Class1inch Lift Check Forged Steel Valves
- Availability: In Stock
- Product Model: D61Y
Fire Safe 800 Class1inch Lift Check Forged Steel Valves
Quick Info
|
Pressure Rating |
800# |
|
End Connection |
SW, Screwed |
|
Socket Weld |
Per ANSI B16.11 |
|
Screwed |
Per ASME B1.20.1 |
|
Face to face |
Per ANSI B16.10 |
|
Port Opening |
Regular Port |
Features
Bolted Cover Design
Poston Type Disc
Seat & Disc Stellited Hard face (Optional)
Suitable For Horizontal Line Only
|

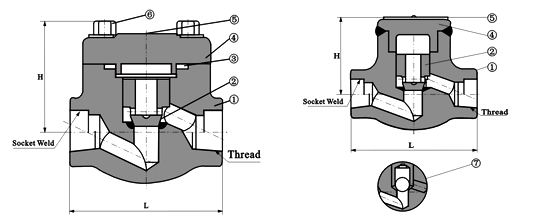

NO. |
Part Name |
Carbon Steel |
Alloy Steel |
Stainless Steel |
|
|
A105 |
F22 |
F304（L） |
F316（L） |
||
|
1 |
Body |
A105 |
A182F22 |
A182F304（L） |
A182F316（L） |
|
2 |
Disc |
A276420 |
A276304 |
A276304（L） |
A276316（L） |
|
3 |
Nut |
316+Flexible Graphite |
316+PTFE |
||
|
4 |
Seal Ring |
A105 |
A182F22 |
A182F304（L） |
A193 B8（M） |
|
5 |
Nut |
SS |
|||
|
6 |
Lifting Bolt |
A193B7 |
A193B16 |
A193B8（M） |
A193B8（M） |
|
Suitable Medium |
Water, Gas, Oil etc |
Water, Gas, Oil etc |
Corrosive acid etc |
||
|
Suitable temperature |
—29℃～425℃ |
—29℃～550℃ |
—29℃～200℃ |
||
|
NPS |
R.B. |
3/8” |
1/2” |
3/4” |
1” |
11/4” |
11/2” |
2” |
|
|
||||||||
|
F.B. |
|
3/8” |
1/2” |
3/4” |
1” |
11/4” |
11/2” |
2” |
|
|||||||||
|
L |
79 |
79 |
92 |
111 |
120 |
152 |
172 |
200 |
||||||||||
|
W |
61 |
61 |
65 |
79 |
95 |
103 |
118 |
132 |
||||||||||
|
Weight |
Bolted Bonnet |
1.4 |
1.2 |
1.5 |
3.1 |
3.9 |
5.6 |
8.9 |
12.5 |
|
||||||||
|
Welded Bonnet |
1.1 |
1 |
1.2 |
2.9 |
3.3 |
4.9 |
8.1 |
10.9 |
|
|||||||||
