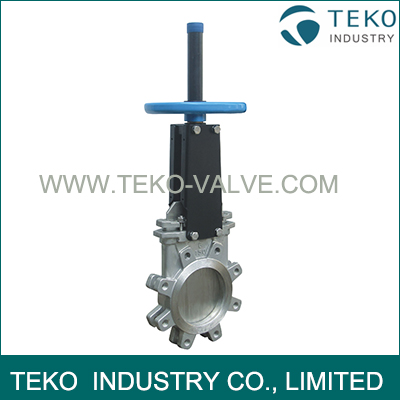

Stainless Steel Knife Valve Metal Seated Full Lug ANSI B16.5 Connection For Corrosive Fluid
Stainless Steel Knife Valve Metal Seated Full Lug ANSI B16.5 Connection For Corrosive Fluid
- Availability: In Stock
- Product Model: PZ73X
$0.00
Ex Tax: $0.00
Stainless Steel Full Lug ANSI B16.5 Connection Knife Gate Valves
Features
Designed to handle water, white water, pulp stock, and corrosive fluids in process industries.
● Meets MSS SP-81 for wafer-type knife gate valves.
● Lug bolt pattern matches ASME B16.5 Class 150. Holes tapped.
● 150 psig (10.3 bar) maximum working pressure. 150°F (65°C) maximum working temperature. Applications outside of these conditions require special design considerations.
● Interchangeable with different actuation of Pneumatic, Electric, not need to disassemble from pipeline.

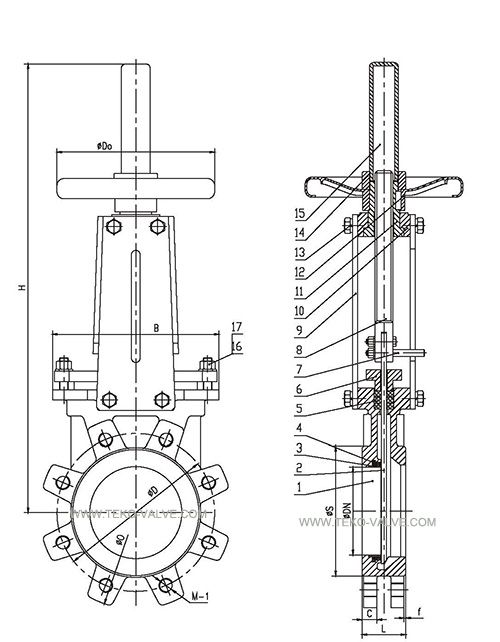

Diemensions & Drawing
| DN | L | O | D | S | C | f | M-(UNC) | B | H | Do | |
| in | mm | ||||||||||
| 2" | 50 | 48 | 152 | 120.5 | 91.9 | 16 | 1.6 | 4-M5/8"-11 | 136 | 375 | 180 |
| 2-1/2" | 65 | 48 | 178 | 139.5 | 104.8 | 16 | 1.6 | 4-M5/8"-11 | 151 | 420 | 180 |
| 3" | 80 | 51 | 190 | 152.5 | 127.0 | 17 | 1.6 | 4-M5/8"-11 | 170 | 450 | 200 |
| 4" | 100 | 51 | 229 | 190.5 | 157.2 | 17 | 1.6 | 8-M5/8"-11 | 190 | 512 | 200 |
| 5" | 125 | 57 | 254 | 216 | 185.4 | 17 | 1.6 | 8-M3/4"-10 | 212 | 570 | 220 |
| 6" | 150 | 57 | 280 | 241.5 | 215.9 | 21 | 1.6 | 8-M3/4"-10 | 230 | 665 | 250 |
| 8" | 200 | 70 | 343 | 298.5 | 269.7 | 21 | 1.6 | 8-M3/4"-10 | 286 | 825 | 300 |
| 10" | 250 | 70 | 406 | 362 | 323.8 | 24 | 1.6 | 12-M7/8"-9 | 338 | 1000 | 350 |
| 12" | 300 | 76 | 483 | 432 | 381.0 | 24 | 1.6 | 12-M7/8"-9 | 388 | 1155 | 350 |
| 14" | 350 | 76 | 533 | 476 | 412.7 | 33 | 1.6 | 12-M1"-8 | 460 | 1310 | 400 |
| 16" |
