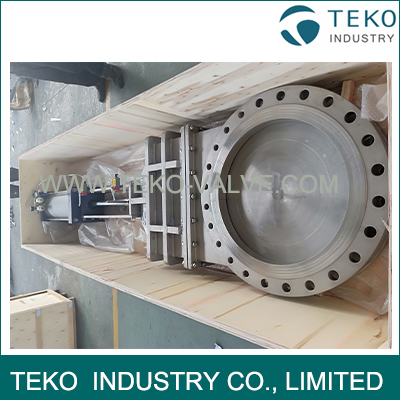

Custom Fabrication ANSI End Big Size Knife Valve Stainless Steel Material

Stainless Steel Custom Fabrication ANSI End Big Size Knife Valves

Description

Large Pipelines have their own unique challenges. To someone outside the industry, the concept of a 96” diameter valve might be overwhelming. For you, it’s another day at the office. There are no off-the-shelf solutions to large valve requirements. Anything greater than 36” is a specification within itself. Different applications, different service demands. All dictating special design considerations – even if they are being made for the same market. Sheer size adds another unique set of complexities to the design and manufacturing of large valves. And few valve suppliers have the skills to produce a consistently reliable product. Engineered Valves has the knowledge, experience and facilities to be your source for reliable TEKO-Valve large size valves.

Applicable Standards

• Design & Manufacture: MSS SP-81
• Face to Face: ANSI B16.10 ;MSS SP-81, or as per customer requests
• Connection End: ANSI B16.5, EN1092-1
• Test: API 598, MSS SP-81
• Certificate: PED/CE, ISO, etc.

Specification

• Sizes: 2" - 24" or DN50 - DN600
• Pressure Rating: Class150 or PN6 - PN16
• Material: WCB, WC6, WC9, C5, CF8, CF8M, CF3, CF3M, etc
• Operation: Manual, Gear, Pneumatic, hydraulic and Electric actuator
• Application: slurry, mining industry, paper industry, waste water, etc.

Applications
