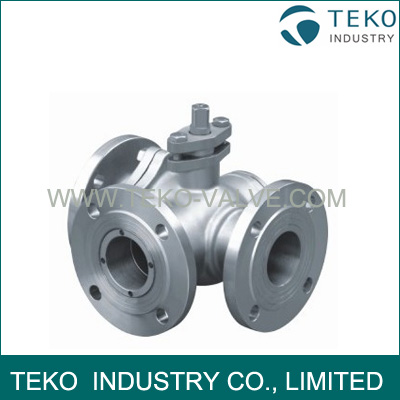

T Port L Port Three Way Ball Valve
T Port L Port Three Way Ball Valve
- Availability: In Stock
- Product Model: Q45H, Q44H
$0.00
Ex Tax: $0.00
T Port L Port Three Way Ball Valve
Technical Data:
| Size rating: | 1/2”~12” |
| Working Pressure: | 10K |
| Design Standard: | API 608 |
| Flange Drilling: | JIS B2002 |
| Test Standard： | IS B 2003 |
Use and specifications
T Port L Port Three Way Ball Valve is applied in the pipes with media such as water, steam, and oil with working temperature less than or equal to 150 ℃, used to change the flow direction and connect or cut off the media in pipes.
Dimensions:
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L | 150 | 160 | 180 | 200 | 220 | 240 | 260 | 280 | 320 | 380 | 440 | 550 | 670 | 720 |
| D | 95 | 100 | 125 | 135 | 140 | 155 | 175 | 185 | 210 | 250 | 280 | 330 | 400 | 445 |
| D1 | 70 | 75 | 90 | 100 | 105 | 120 | 140 | 150 | 175 | 210 | 240 | 290 | 355 | 400 |
| Z-￠d | 4*15 | 4*15 | 4*19 | 4*19 | 4*19 | 4*19 | 4*19 | 8*19 | 8*19 | 8*23 | 8*23 | 12*23 | 12*25 | 16*25 |
