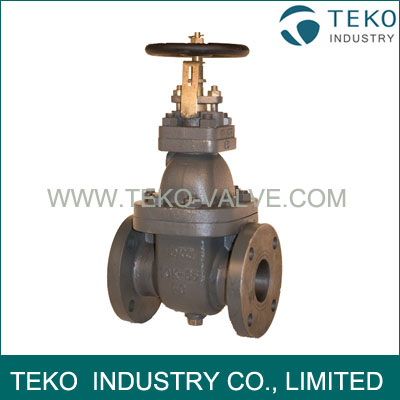

JIS Marine cast iron gate valve
JIS Marine cast iron gate valve
- Availability: In Stock
- Product Model: JIS F7364
$0.00
Ex Tax: $0.00
JIS Marine cast iron gate valve
Main Materials:
1 - Body - Cast Iron - FC20
2 - Seat - Bronze - BC6
3 - Disc - Bronze - BC6
4 - Stem - Brass - C3771BD

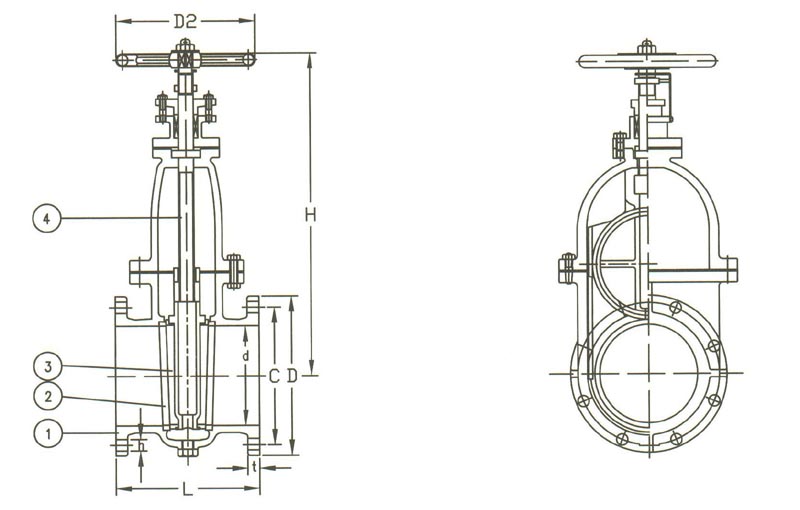

Drawing of JIS Marine cast iron gate valve:
|
MODEL No. |
Face to face |
Flange diam. |
Flange Pitch |
Flange Hole |
Weight |
|
|
L(mm) |
D(mm) |
C(mm) |
n*d(mm) |
W(kgs) |
|
F7364 10K50 |
200 |
155 |
120 |
4×Ф19 |
19.4 |
|
F7364 10K65 |
220 |
175 |
140 |
4×Ф19 |
27.6 |
|
F7364 10K80 |
230 |
185 |
150 |
8×Ф19 |
33 |
|
F7364 10K100 |
250 |
210 |
175 |
8×Ф19 |
45.8 |
|
F7364 10K125 |
270 |
250 |
210 |
8×Ф23 |
65.9 |
|
F7364 10K150 |
290 |
280 |
240 |
8×Ф23 |
86 |
|
F7364 10K200 |
320 |
330 |
290 |
12×Ф23 |
136 |
|
F7364 10K250 |
380 |
400 |
355 |
12×Ф25 |
230 |
|
F7364 10K300 |
440 |
445 |
400 |
16×Ф25 |
331 |
|
F7364 10K350 |
500 |
490 |
445 |
16×Ф25 |
433 |
|
F7364 10K400 |
590 |
560 |
510 |
16×Ф27 |
597 |
|
F7364 10K450 |
640 |
620 |
565 |
20×Ф27 |
704 |
|
F7364 10K500 |
710 |
675 |
620 |
20×Ф27 |
901 |
|
F7364 10K550 |
780 |
745 |
680 |
20×Ф33 |
1192 |
|
F7364 10K600 |
850 |
795 |
730 |
24×Ф33 |
1490 |

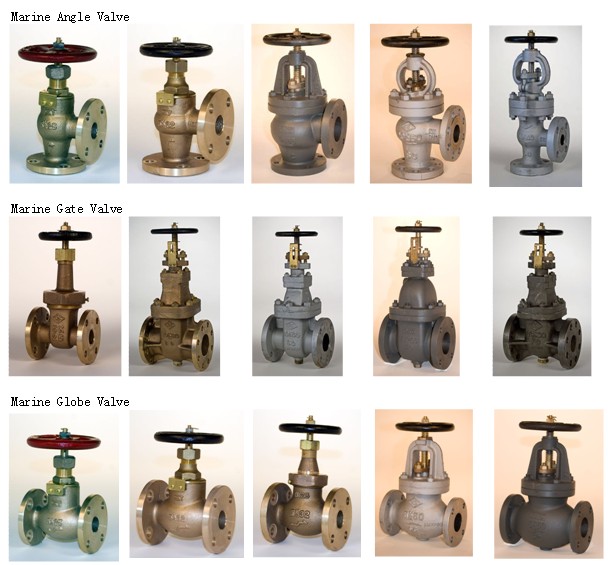

Our Products:
