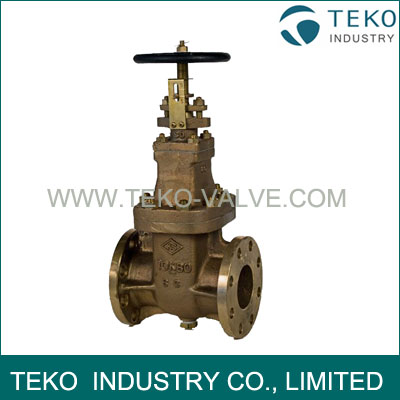

JIS 10K Marine Cast Bronze Gate Valve
JIS 10K Marine Cast Bronze Gate Valve
- Availability: In Stock
- Product Model: JIS F7368
$0.00
Ex Tax: $0.00
JIS 10K Marine Cast Bronze Gate Valve
Main Materials:
1 - Body - Bronze - BC6
2 - Disc - Bronze - BC6
3 - Stem - Brass - C3771BD
Applicable Scope for Cast Bronze Gate valve
Fuel Oil Piping,Lubricating Oil Piping and Water Piping at temperatures 120℃ or less.

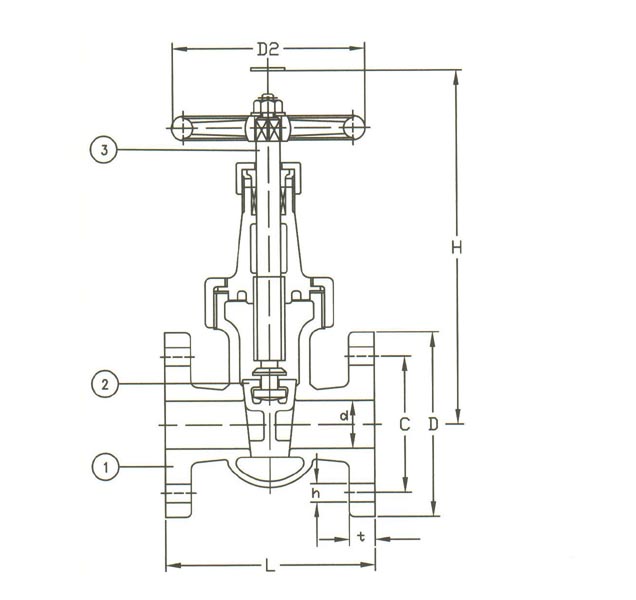

Drawing
|
MODEL No. |
Face to face |
Flange diam. |
Flange Pitch |
Flange Hole |
Weight |
|
|
L(mm) |
D(mm) |
C(mm) |
n*d(mm) |
W(kgs) |
|
F7368 10K15 |
100 |
95 |
70 |
4×Ф15 |
2.96 |
|
F7368 10K20 |
110 |
100 |
75 |
4×Ф15 |
3.89 |
|
F7368 10K25 |
120 |
125 |
90 |
4×Ф19 |
5.82 |
|
F7368 10K32 |
140 |
135 |
100 |
4×Ф19 |
7.52 |
|
F7368 10K40 |
150 |
140 |
105 |
4×Ф19 |
9.71 |
|
F7368 10K50 |
200 |
155 |
120 |
4×Ф19 |
19.4 |
|
F7368 10K65 |
220 |
175 |
140 |
4×Ф19 |
27.6 |
