Duo Check Retainerless Check valves
- Availability: In Stock
- Product Model: H76X H76H

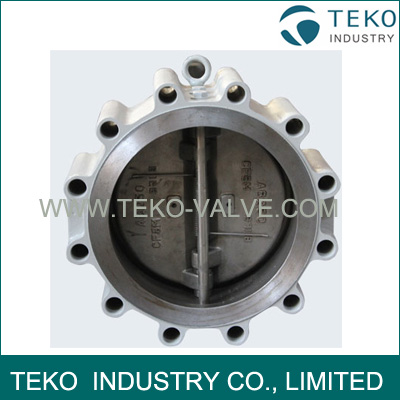

Lug Type Duo Check Retainerless Check valves
Application:
Duo Check Retainerless Check Valve is used for pipes under following conditions: nominal pressure 1.0 Mpa-42.0 Mpa, Class150~2500; nominal size DN15~1200mm; working temperature: -195~540℃. Applying different materials, it can be used for water, steam, oil, nitric acid, acetic acid, oxidizing liquid and carbamide etc.
Standards:
|
Manufacture Standard |
Face to Face |
Flange Drilling |
Pressure-Temperature Class |
Test Standard |
|
API594, API6D, JB/T8937 |
API594, API6D JB/T8937 |
JB/T74~90, GB/T13402, GB/T9112-9124, HG/T20592~20635, SH3406, ANSI B16.5, API604, ASME B 16.47, DIN2543-2548 |
JB/T74, GB/T9124, HG20604~20625, ASME B16.34, DIN2401, SH3406 |
API598 JB/T9092 |
Our Retainerless Design
The retainerless design provides higher integrity on high pressure, ensuring no concerns about leakage. The new design, without pipe plugs or holes through the body, completely eliminates leakage to the atmosphere. It is with the following advantages:
- No screwed body plugs
- No leak path to atmosphere
- Emissions free design
- No Fugitive Emissions
