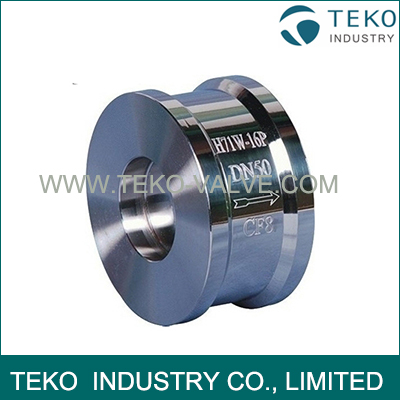

Flangeless Spring Single Plate Wafer Type Check Valve With No - Slam Operation
Flangeless Spring Single Plate Wafer Type Check Valve With No - Slam Operation
- Availability: In Stock
- Product Model: H71X
$0.00
Ex Tax: $0.00
Flangeless Spring Single Plate Wafer Type Check Valve With No-Slam Operation
Applicable Standards:
- Wafer Check Valve,API594,API6D
- Face to face ASME B16.10/API594
- End Flanges ASME B16.5/ASME B16.47
- Butt Welding ends ASME B16.25
- Inspection and test API 598
Size Range:
- 2"~36"
Pressure Rating:
- ASME CL, 150, 300, 600, 900, 1500, 2500
Temperature Range:
- -50°C~650°C
Technical Data
| Structural Information | Flangeless Lift Vertical Type Check Valve |
| Design Standard | API 594 |
| Face to face | ASME B16.10 |
| Flanged ends | ASME B 16.5 |
| Test & Inspection | API 598 |

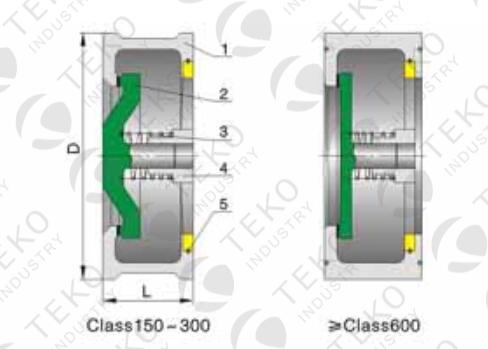

Material List
| Body | WCB, CF8,CF8M, CF8C, CF3,CF3M |
| Disc | WCB, CF8,CF8M, CF8C, CF3,CF3M |
| Spring | AISI 9260, AISI6150, A182-F304,F316,F321,F304L, F316 |
| Plate | WCB, CF8,CF8M, CF8C, CF3,CF3M |
| Lock ring | AISI 9260, AISI6150, A182-F304,F316,F321,F304L, F316 |
