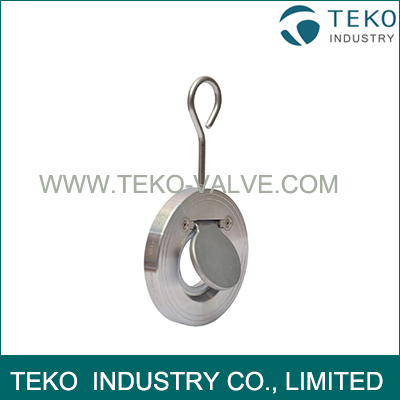

Stainless Steel Wafer Type Short Pattern Single Door Water Check Valve

Stainless Steel Wafer Type Short Pattern Single Door Water Check Valve

Standard Features:

· Investment Casting Body

· Flange Standard:DIN PN10-40

· Viton Sealing and Metal Sealing Available

· Material:CF8M/CF8/SS316/SS304/1.4408/1.4301

· Max working temperature: 400 ℃

· Working Medium:Water,Oil,Gas ect.

· Inspection&Testing:API 598

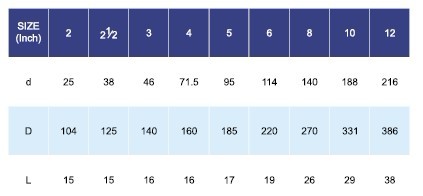

Specifications

Applicable Standards:

- FACE TO FACE: AP16D/ANSE B16.10

- FLANGE DIMENSION: ANSI/DIN/JIS/JB

Size Range:
- DN40~DN600

Pressure Rating:
- PN10~PN40
Temperature Range:
- -29°C~180°C

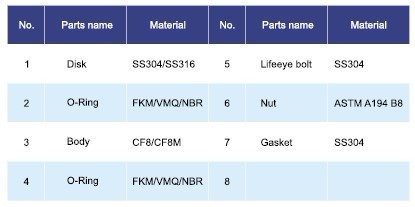

Main Material
