API 594 Ductile Iron GGG40 Double Plate Wafer Check Valve For Water Applications
- Availability: In Stock
- Product Model: D76X

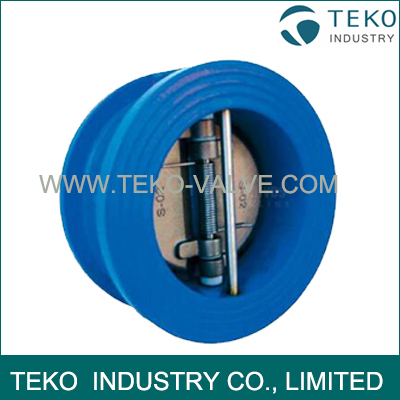

API 594 Ductile Iron GGG40 Double Plate Wafer Check Valve For Water Applications
Dual plate check valve with low pressure loss. Spring loaded for clean fluids. Water and other non-particle media. The Valve is shut tight at low pressures and should be mounted in between flanges.
|
Dual Plate Wafer Check valve PN 10/16 |
Type: Face to face ISO 5752 series 16 |
|
|
GGG40+NBR PN10/16 - Wafer |
|
|
|
Materials
|
Body |
Ductile Iron GGG40 + NBR |
|
Disc |
ASTM A351 CF8 |
|
|
Shaft |
ASTM A276 410 |
|
|
Spring |
AISI 321 |
|
|
Other
|
Connections |
flanges DIN 2501 PN10/16 & ASME B16.5 Class 150 |
|
Temperature range |
-10ºC up to +80ºC |
|
|
Sealing test |
18 bar |
|
|
Shell test |
24 bar |
|
|
Inspection & Tests |
API 598 |
|
|
(*) Other materials on request |
||
Key features:
- Available in sizes: 2" to 24"
- Temperature range: -10°C to 120°C
- Pressure rating: PN16
- Low cracking pressure
- Space saving design
Material List
|
No. |
Name |
QTY |
Material |
|
1 |
Rivet |
2 |
Aluminium |
|
2 |
Label |
1 |
Stainless steel |
|
3 |
Body |
1 |
GGG40 + NBR |
|
4 |
Disc |
2 |
ASTM A351 CF8 |
|
5 |
O-ring |
3 |
EPDM |
|
6 |
Spring |
2 |
Stainless steel 321 |
|
7 |
Shaft |
2 |
ASTM A276 410 |
|
8 |
O-ring |
2 |
EPDM |
|
9 |
Gasket |
4 |
NBR |
|
10 |
Hexagonal nuts |
4 |
Carbon steel |
|

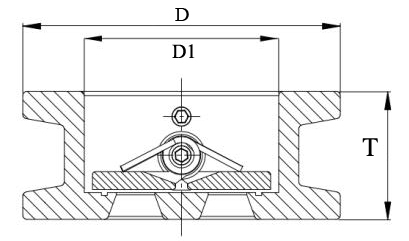

DN |
L |
D |
D1 |
KG |
|
2" |
54 |
106 |
66 |
1.8 |
|
21/2" |
54 |
126 |
78 |
2.4 |
|
3" |
57 |
141 |
90 |
3.2 |
|
4" |
64 |
161 |
15 |
4.8 |
|
5" |
70 |
191 |
141 |
7.3 |
|
6" |
76 |
217 |
170 |
10 |
|
8" |
95 |
272 |
210 |
14.2 |
|
10" |
108 |
327 |
273 |
23.6 |
|
12" |
142 |
382 |
324 |
37.5 |
