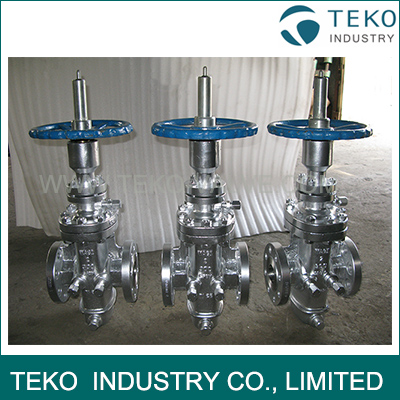

API 6D Through Conduit High Pressure Self-tightening Slab Expanding Gate Valve For Natural Gas



TEKO INDUSTRY produces a full range of through conduit gate valves for production, processing and transmission applications.



Through conduit gate valves provides superior bubble tight sealing capabilities in gas services and unmatched robustness in harsh services with high pressure, high temperature and sand service.



Our through conduit gate valve comply with the following standards:



-API 6D

-API 6A

-ANSI B16.34

-API 6FA

-PED



Features


-Full bore

-Piggable

-Double block and bleed, double isolation

-Bubble tight

-Bolted bonnet

-Rising stem

-Stem back-seat

-Soft or metal seated

-Fire safe

-Fugitive emission



Material



-Carbon Steel

-Low temperature carbon steel

-Stainless austenitic and superaustenitic

-Duplex

-Nickel Super Alloy

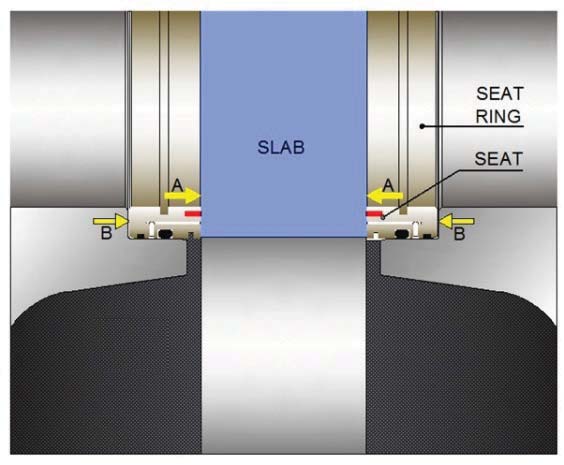

Double Block & Bleed



When the valve is at closed position, and with equal or no pressure, both spring loaded seats can shut off the line pressure independently from both upstream and downstream sides. Thus blocking both sides and the body cavity can be bleed out by opening the drain plug. This creates a DBB Double Block & Bleed scenario.
