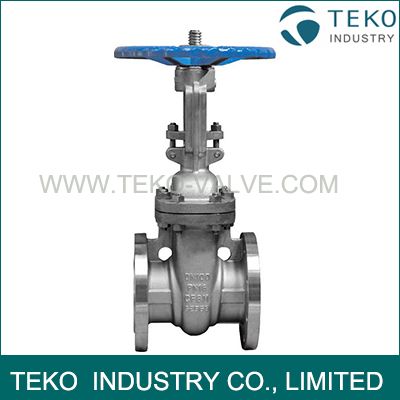

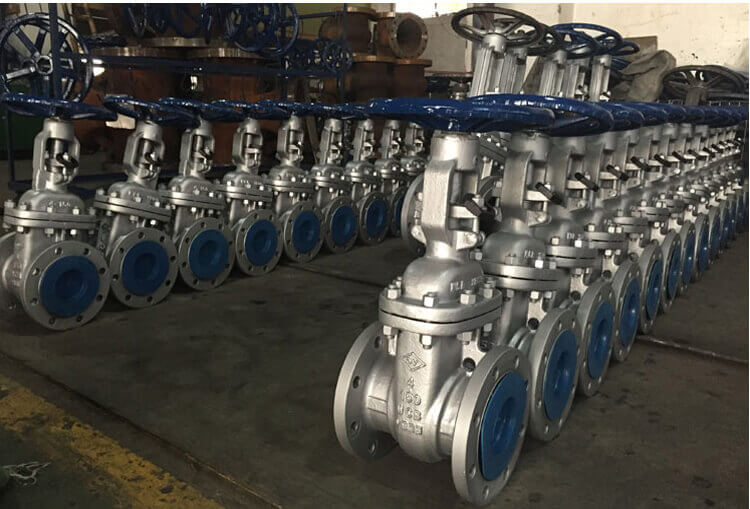

API600 Handwheel Operation WCB Material Flexible Wedge Industrial Gate Valve

Design Features



Full port design

With by pass valve
OS&Y, outside and screw
Bolted bonnet, back seal structure
Flexible wedge, fully guided
Choice of solid or flexible wedge
Renewable or welded seat
Extended stem design for Cryogenic Conditions

Flanged or butt-welding ends



Technical Specification

Size:2"-48" or DN50-DN1200

Pressure: Class150-2500LB or PN16-PN250 or 10K-40K

Material: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M,etc.

Design & Manufacture Std.: API600, ASME B16.34, API6D, BS5351,JIS B2073

Face to Face Std.: ASMEB16.10 (JIS B2002),API 6D, DIN3202

Butt welded end Std.: ASME B 16.25

Test Standard: ISO5208, API598 (JIS B2003), API 6D, BS 6755

Operated way: Handwheel, Gear, Pneumatic, Electric Actuator



Detailed Specification:

Name

API600 Handwheel Operation WCB Material Flexible Wedge Industrial Gate Valve

Model Number:

Z40Y-150Lb

Structure:

API 600 OS&Y, rising stem

Pressure:

150Lb~,2500Lb

Power:

Handwheel,Gear Operated

Material:

WCB, LCB, WC6, WC9,CF8,CF8M,CF3,CF3M,

Temperature of Media:

-29 Deg. C ~ 425 Deg. C

Media:

W.O.G etc

Design and manufacture

ANSIB16.34,API600 API603

Face to Face

ASME B16.10

Flanged end

 ASME RF B16.5,ASME B16.47 series A

B.W. end

ASME B16.25

Test &Inspection

API598,

Main Material of parts

NO.

Part name

Material

14

Grease nipple

Brass

13

Grub screw

Carbon steel

12

Hand wheel nut

Carbon steel

11

Hand wheel

Malleable lron/cast steel/ ducile lron/fabricated steel

10

Yoke nut

Carbon steel/SS

9

Eye bolt and nut

A 193 B7/A194 2H~A193 B8/A194 8/A

8

Pin

Carbon steel/stainless steel

7

Stem nut

ASTM A 439-D2/Copper Alloy

6

Gland flange

Carbon steel/equivalent to body material

5

Gland

A182 F6A,F304,F316,F44,F51,Monel etc.

4

Back seat

 A182 F6A,F304,F316,F44,F51,Monel etc.

3

Wedge

WCB,CF8,LCB

2

Seat

A105/F304/F316 + SS304/SS316/SS13Cr/STL6/Monel etc.

  1

Body

WCB,WC6,WC9,CF8,A351 CF8M,CF3,CF3M,LCB,CN7M.

Optional Body Material:

Carbon steel

ASTM A216 WCB , etc

Low temperature steel

A352 LCB , etc

Cr-Mo steel

A217 WC6 ,WC9, etc

Stainless Steel

A351 CF8,CF3,CF8M,CF3M , etc

Alloy steel

Alloy 20 , etc

Super duplex

A995 4A ,5A ,6A , etc

Aluminum bronze

B148 C95500 , C95600 , C95800 , etc

Monel

Monel K400, K500

Inconel

inconel 600 , etc

Hastelloy

Hastelloy B , Hastelloy C276 , etc

Incoloy

Incoloy 825 , Incoloy 625 , etc
