Flexible Wedge Gate Valve
Flexible Wedge Gate Valve
- Availability: In Stock
- Product Model: Z41W
$0.00
Ex Tax: $0.00

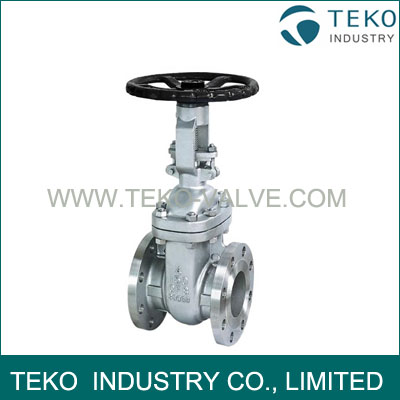

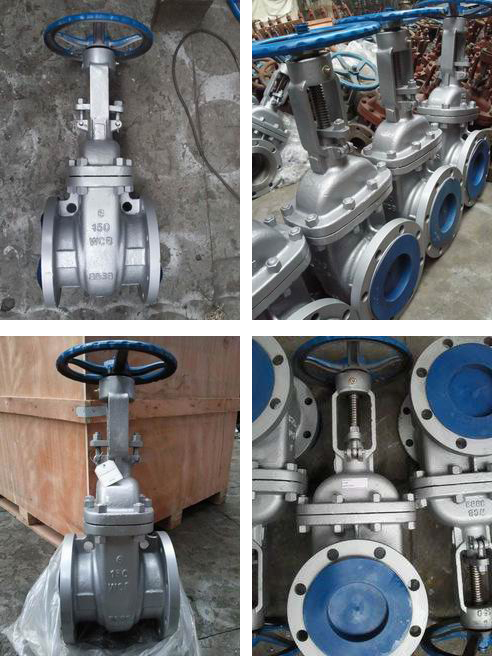

API 600 Flexible Wedge Gate Valve
Technical Data:
1)Material:WCB CF8 CF8M CF3 CF3M WC9 C5
2)Size rating:NPS 2"~48"
3)Working Pressure:Class 150Lb~2500Lb
4)Design Standard:API 600/API 603
5)Face To Face Standard:36" and smaller to ANSI B16.10, 40" and larger to manufacture standard
6)Flange End: 24" and smaller to ASME B 16.5, 26" and larger to manufacture's standard.
7)Test Standard:API598, API600
Material List:
| No. | Parts | Material |
| 1 | Body | ASTM A 216 Gr.WCB |
| 2 | Seat Ring | ASTM A105+13Cr |
| 3 | Wedge | ASTM A216 Gr.WCB+13Cr |
| 4 | Stem | ASTM A 182 F6a |
| 5 | Gasket | 304S.S. Jacketed Graphite |
| 6 | Stud | ASTM A 193 Gr.B7 |
| 7 | Nut | ASTM A 194 Gr.2H |
| 8 | Bonnet | ASTM A 216 Gr.WCB |
| 9 | Back Seat | ASTM A276 410 |
| 10 | Packing | Graphite |
| 11 | Pin | C.S. |
| 12 | Gland Bolt | ASTM A 193 Gr.B7 |
| 13 | Gland Nut | ASTM A 194 Gr.2H |
| 14 | Bushing | ASTM A 276 410 |
| 15 | Gland | ASTM A 216 Gr.WCB |
| 16 | Stem Nut | Aluminum Bronze |
| 17 | Bushing | C.S. |
| 18 | Hand Wheel | Malleable Iron |
| 19 | H.W Lock Nut | C.S. |
| 20 | Lubricator | Assemly |
