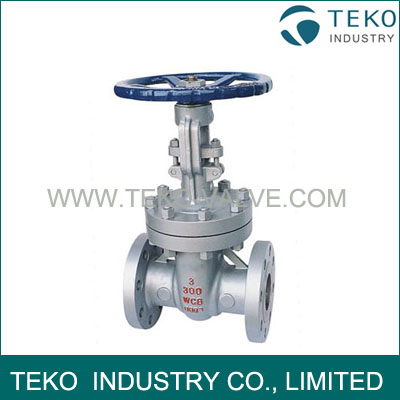

API WCB Metal Seated Flanged End Gate Valve For Power Plant

What does Gate Valve mean?

A gate valve has a flat closure element that slides into the flow stream to stop the fluid. They are one of the most commonly used valves, and are primarily used to permit or prevent the flow of liquids.

Specifications:

Material: WCB CF8 CF8M CF3 CF3M WC9 C5
Size rating: NPS 2"~36"
Working Pressure: Class 150LB, 300LB
Design Standard: API 6D and API 600
Face to Face Design: 6D and ANSI B16.10
Flange end Standard: ANSI B16.5 and MSS SP-44
Test Standard: API 6D and API 598

Material List


No. Parts Name Material
1 Body ASTM A216 Gr.WCB
2 Seat Ring ASTM A105+13Cr
3 Wedge ASTM A216 Gr.WCB+13Cr
4 Stem ASTM A182 F6a
5 Gasket 304SS Jackted Graphite
6 Stud ASTM A193 Gr.B7
7 Nut ASTM A194 Gr.2H
8 Bonnet ASTM A216 Gr.WCB
9 Back Seat ASTM A 276 410
10 Packing Graphite
11 Pin C.S.
12 Gland Bolt ASTM A 193 Gr.B7
13 Gland Nut ASTM A194 Gr.2H
14 Bushing ASTM A276 410
15 Gland ASTm A 216 Gr.WCB
16 Stem Nut Aluminum Bronze
17 Bushing C.S.
18 Handwheel Malleable Iron
19 H.W. Lock Nut C.S.
20 Lubricator Assembly

NOTE: Customer material is also available.
