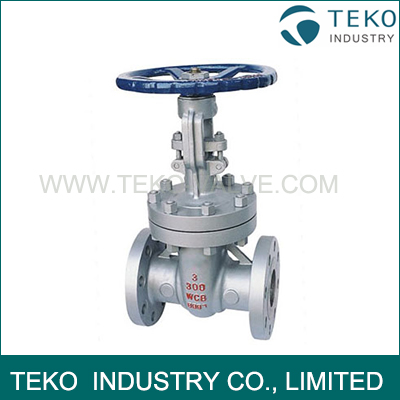

DESIGN FEATURES:



  • A positive backseat, high quality packing material and improved stuffing box design ensure tighter stem seal
  • Fully guided solid wedge reduces wear on seating surfaces
  • Recessed body-bonnet joint design captures the stainless steel spiral wound gasket ensuring seating integrity
  • Weld-in seat design ensures tight and effective seat assembly
  • Stud and bolt arrangement facilitates packing maintenance
  • The T-head stem design provides positive disc to stem connection and ensures effective seating operation

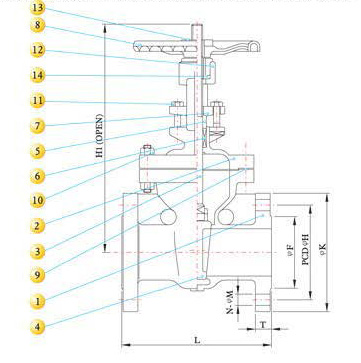

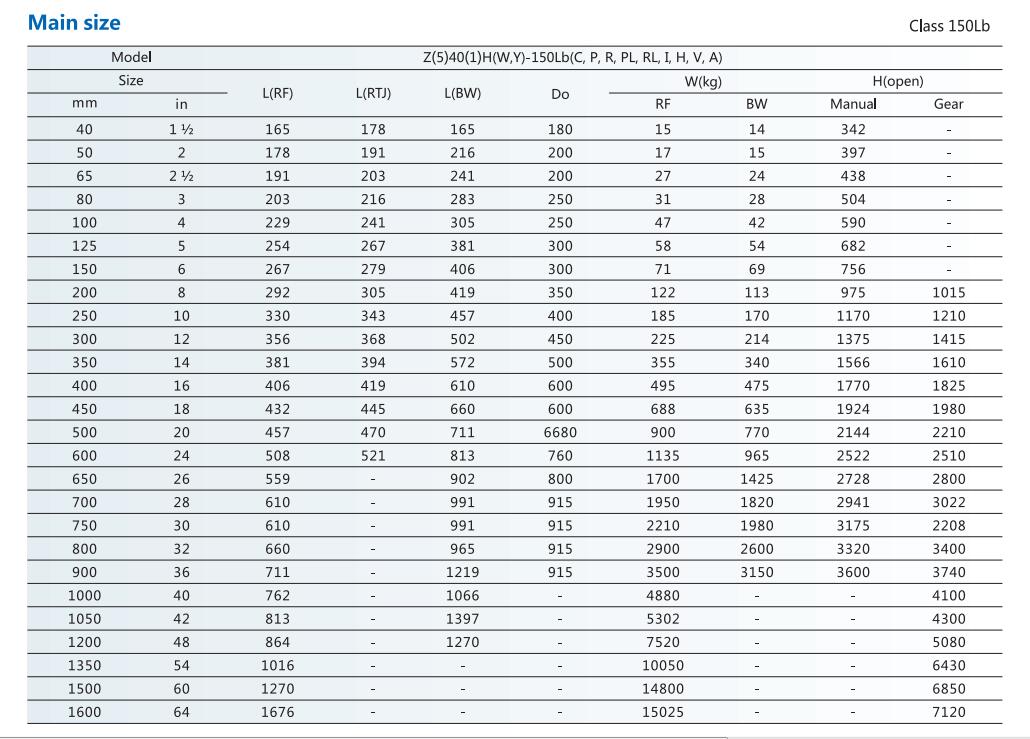

Material List

NO

PART NAME

MATERIAL

QTY

1

BODY

ASTM A351 Gr.CF8M

1

2

BONNET

ASTM A351 Gr.CF8M

1

3

STEM

ASTM A276 Gr.316

1

4

DISC

ASTM A351 Gr CF8M

1

5

CLAND

ASTM A351 Gr CF8

1

6

GLAND PACKING

PTFE

1

7

GLAND FLANGE

ASTM A351 Gr.CF8

1

8

HAND WHEEL

ASTM B A536 Gr. B65-45-12

1

9

GASKET

PTFE(OR NON ASBESTOS)

1

10

BONNET BOLT/NUT

ATEM A 193 Gr.B8/ASTM A194 Gr.8

4-16

11

CLAND BOLT'NUT

ATEM A 193 Gr.B8/ASTM A194 Gr.8

2

12

YOKE SIEEVE

BRONZE DUCTILE NI.RESIST)

1

13

HAND WHEEL NUT

STEEL

1

14

YOKE SLEEVE NUT

SS304

1
