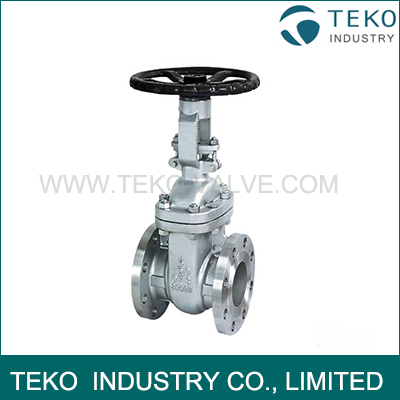

API 600 Standard Cast Steel Material Wedge Gate Valve



Descriptions:



*CAST OR FORGED STEEL BODY
*OUTSIDE SCREW AND YOKE
*RISING STEM, NON-RISING OPERATOR*

RENEWABLE SEATS

*REMOVABLE YOKE SLEEV

*BACKSEAT FOR REPACKING UNDER PRESSURE.



Design Construction:

API600, ASME B 16.34

Pressure-Temperature Rating ASME B 16.34

Face to Face/End to End ASME B16.10

Connection ASME B 16.5/ B16.25

Testing and Inspection: API598





Face to face dimensions



SIZE

2”

2.1/2½”

3”

4”

6”

8”

10”

12”

14”

RF

178

190

203

229

267

292

330

356

381

RJ

191

203

216

242

280

305

343

369

394

BW

216

241

282

305

403

419

457

502

572

C-closed

357

415

445

556

712

862

1.02

1.178

1.318

D-open

417

490

530

671

877

1.082

1.29

1.498

1.676



On request

  • other basic design according to API 6D
  • other shell materials (Carbon steel, Stainless steel, Monel, Duplex, Inconel)
  • other trim
  • other flange facings according to ANSI B 16.5 or B/W ends to ANSI B16.25
  • other type gasket body - bonnet
  • lantern ring for class 300
  • drain tappings
  • by-pass
  • open and shut indicator
  • electric actuator operation
  • manufactured according to specification NACE MR 0175 for hydrogen sulphide and sour gas service
