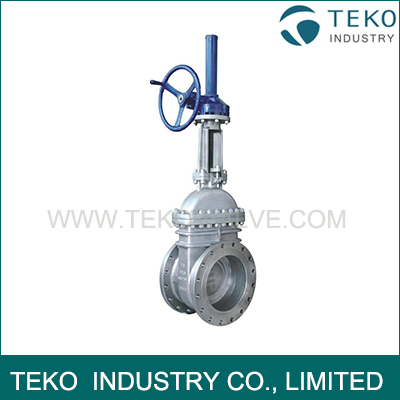

API600 Flange End Bevel Gear Opeartion Bolted Bonnet OS & Y Wedge Gate Valve



Multi-turn Bevel Gear Operation gate valve

Product Description
1) Size:NPS1/2"~36"
2) Pressure:Class150~1500
3) Material: A105,F11,LF2,F22,F304,F316,F304L,F316L



Specifications of Gear operated gate valves:


1) Size: 2 - 60"
2) Class: 150lb - 2500lb
3) Material: WCB, LCB, CF8 304, CF8M 316, CF3 304L, CF3M 316L, WC1, WC6, WC9, CN7M, Monel etc.
4) Standards:
a) Design and manufacture: API 600, API 6D
b) Inspection and test: API 598, API 600, API 6D
c) End flange dimensions: ANSI B16.5, ANSI B16.47
d) BW end dimensions: ANSI B16.25
e) Socket-weld dimensions: ANSI B16.11
f) Face to face and end to end: ANSI B16.10





Material List



Name Material
Body A216 WCB A352 LCB A217WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351CF3 A351CF3M
Bonnet
Wedge
Stem A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
Stem Nut ZCuA110Fe3 Bronze
Handwheel QT400-15 ductile iron cast iron
Bonnet Bolt 35CrMoA 1Cr17Ni2 25Cr2MoVA 304 316 4Cr14Ni14W2Mo B7 B8 B8M
Nut 45 35CrMo 304 316 2H 8 8M
Disc sealing 13Cr and 18Cr-18Ni or HF(Co-Cr-W)
