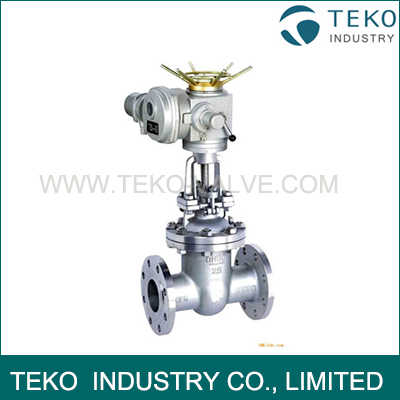

API600 Duplex Steels Flexible Wedge Gate Valve Class150 For Oil Gas Applications

Product Review

TEKO gate valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar. The gate faces can form a wedge shape or they can be parallel. Typical gate valves should never be used for regulating flow, unless they are specifically designed for that purpose. On opening the gate valve, the flow path is enlarged in a highly nonlinear manner with respect to percent of opening.



Specifications



Class 150-1500Lbs

Size: NPS2-60”

Basic Design: API600, BS1414

Face to face: ANSI B16.10

End: 2~24” ANSIB16.5; 26~52” ANSI B16.47

Manufacturing to NACE MR0175



Application

Cast gate valves provide optimum performance in conditions where high flow efficiency, tight shut off and long service is required. A wide choice of shell and trim materials do cover the whole range of applications, from the every-day type of non-corrosive service to critical service with highly aggressive media.



MATERIALS





Body

ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB

Bonnet

ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB

Wedge

ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB

Stem

ASTM A 276 410 / A 276 304 / A 276 304L / A 276 316L

Seat Rings

ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB

Back Seat Bushing

ASTM A 276 410 / A 276 304 / A 276 304L / A 276 316L

Gland

ASTM A 276 410 / A 276 304 / A 276 304L / A 276 316L

Gland Flange

Carbon Steel / Stainless Steel

Stem Nut

ASTM A 439 Gr.D2 / Al. Bronze

Lock Nut

Carbon Steel / SS 304

Gland Packing

Graphite Asbestos / Graphoil / PTFE

Bonnet Gasket

Corrugated Soft Iron / Corrugated SS / Spiral Wound SS 304 with Asbestos or Graphoil / Octagonal Ring

Gland Eye - Bolt & Nut

Carbon Steel / Stainless Steel

Cross Bolts & Nuts

Carbon Steel / Stainless Steel

Hand Wheel

Carbon Steel

Hand Wheel Nut

Carbon Steel

Grease Nipple

Carbon Steel

Grub Screw

Carbon Steel

Studs / Bolts

ASTM A 193 B7 / A 193 B7M / A 193 BBM / A 320 L7

Nut

ASTM A 194 2H / A 194 8 / A 194 8M / A 194 4 / 7
