Pneumatic V Port Ball Valve, V Control Regulating Ball Valve
- Availability: In Stock
- Product Model: VQ677H
Pneumatic Actuated V Port Ball Valve, V Control Regulating Ball Valve
Application:
Applied to control and regulate the fluid containing fibers or high-viscosity fluid containing solid particles. It can also be used as the isolating valve for its reliable sealing. It is widely employed in chemical industry, paper-making, petroleum, electric power, etc.
Specification
Structure
Wafer: DN25-DN250 (1”-10”)
Flange: DN300-DN500
Pressure:
DIN: PN1.0, PN1.6, PN2.5, PN4.0
ANSI: 150Lb, 300Lb
Features:
*Side entry internal body, durable structure, free from distortion and leakage.
*Self-lubricated bearing was connected between the upper/bottom stem with body, which makes a light torque.
*Different materials are available upon working conditions
*Good regulation. V port ball will keep flow rate in a geometry scale. And its rangeability is up to 300:1.
*Compact Structure, easy for installation and maintenance.

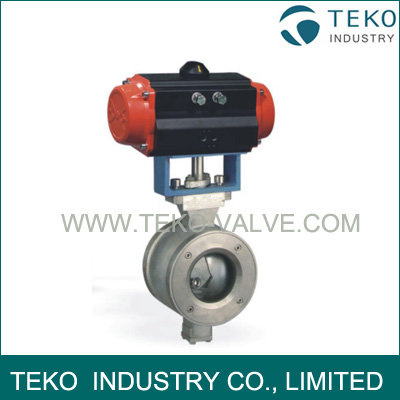

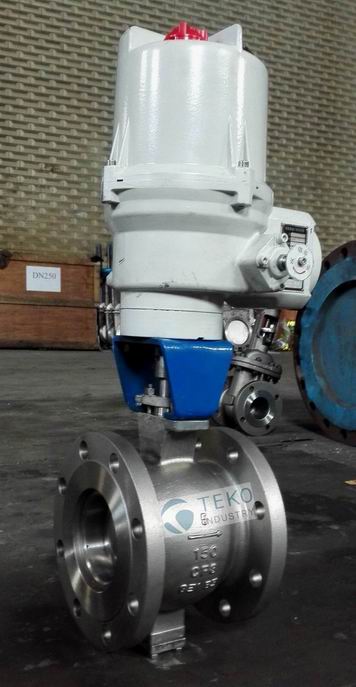

Image:
