A105 API6D Worm Gear Operated Flanged Ball Valve Full Or Reduced Bore
A105 API6D Worm Gear Operated Flanged Ball Valve Full Or Reduced Bore
- Availability: In Stock
- Product Model: QA361F
$0.00
Ex Tax: $0.00

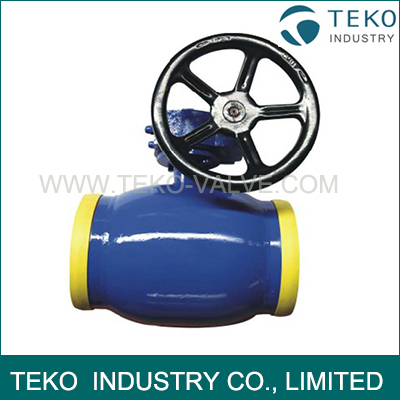

Forged Steel A105 API6D Worm Gear Operated Fully Welded Ball Valve For Oil & Gas
The TEKO fully welded ball valve gives it maximum strength at minimum weight as well as maximum resistance both to pipeline pressures and stresses. The compact, spherical design also eliminates body flanges, thus reducing overall size and leak paths.
Our full welded body ball valve are used mainly in gas transmission and distribution pipeline(Mid-Stream), typical for underground and buried installation.
Quick Info of TEKO fully welded ball valve
| Design |
Fully Welded Body Soft, Metal-to-metal or primary Metal Secondary Soft seated |
| Nominal Size | DN12-4000 |
| Nominal Pressure | PN10~420/ ANSI class 150~2500Lb |
| Temperature | -50℃ to + 280℃ |
Design Features
- Fully welded body
- Floating ball/ trunnion mounted
- Spring energized seats
- Metal or soft seated
- Double Block and bleed
- Full or reduced bore
- Flanged or welded ends
- Anti-blow out stem
- Removable stem seals under full line pressure in fully opened or closed position on request.
- Anti-static device
- Self lubricated bearings
- In accordance with API 6D, API 6FA, BS 6755

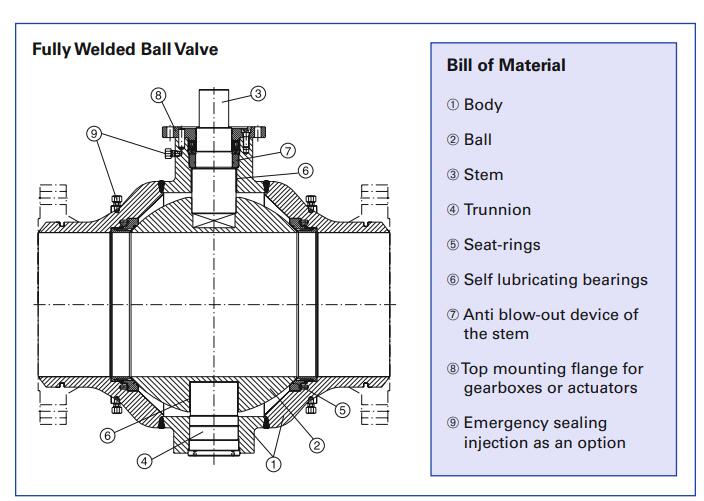

Structure
