Full Welded Trunnion Type Ball Valve

Full Welded Trunnion Type Ball Valve
Full Welded Trunnion Type Ball Valve
  • Availability: In Stock
  • Product Model: Q367H
0 Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Product Inquiry
Add to Wish List Compare this Product

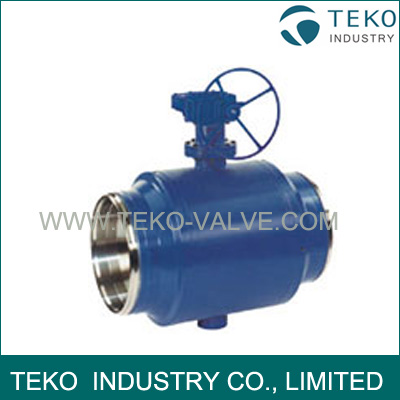

Q367H Full Welded Trunnion Type Ball Valve, Fixed Ball Valve

Specifications for Trunnion Ball Valve:

1)Material:A105, F304, LF2
2)Size rating:NPS 6"-30"
3)Working Pressure:CLASS 150~2500 LB
4)Design Standard:ASME B16.34-2004
5)Face To Face Standard:ASME B16.10
9) Flange End: ASME B16.5, ASME B16.47
10)Test Standard:API 598

Material List:

NO. Parts Name Material
1 Body A105 LF2 F304
2 Seat A105+ENP F304 LF2+ENP
3 Ball A105+ENP F304 LF2+ENP
4 Body A105 LF2 F304
5 O-ring VITON VITON VITON
6 Gasket PTFE PTFE PTFE
7 Packing Bushing F6a F304 F304
8 Gland A105 LF2 F304
9 Stem F6a LF2 F304
10 Lever 2H 1045+Zn 1045+Zn
11 Nut AI 8M 8M
