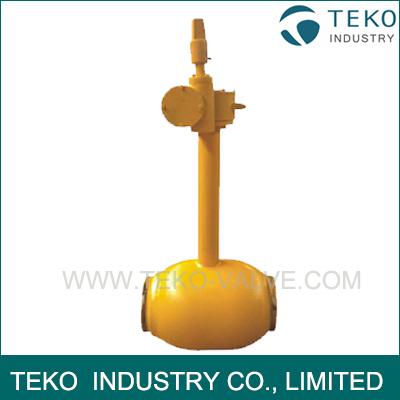

RPTFE Seated Forged Steel Underground BW End Maintenance Free Full Welded Ball Valve For Gas Applications

0 Write a review

$0.00

Ex Tax: $0.00

Qty

Add to Cart

Product Inquiry

Add to Wish List Compare this Product

RPTFE Seated Forged Steel Underground BW End Maintenance Free Full Welded Ball Valve For Gas Applications

Construction is as follows:

Name	Full Welding ball valve
Size	DN25-DN400
Normal pressure	PN10~PN40, CLASS150~300
Design standard	API 6D, API 608,ASME B16.34, MSS SP-72; BS5351,ISO17292,EN13709
Marked	MSS SP-25
Fire safe design	API607,API 6FA
End flange	ANSI B 16.5,ASME B16.47; EN1092,DIN2543~DIN2547,AS2129
Top flange	ISO 5211
Test standard	API598,API6D; DIN3230,EN12266,ISO 5208
Suitable temperature	-29~150°C
Medium	All kinds of industrial gas and heat pipes
Acidic environment	NACE MR0175
Operation	Hand Operated,Gear Operated, Electrical Actuated, Pheumatic Actuated

Product Description

- Fully Welded Ball Valve with BW ends or Flange Ends

- Used for Gas, oil, Stream, and Heating system

- Body material is Carbon Steel or Stainless steel

-Ball is SS304, SS316

- Seat: RPTFE

- Rating is with PN25, PN40

- Surface: FEB Epoxy Power Coated

Main Part & Materials

Characteristics

Application

1. City gas: gas output pipeline, the main line and each branch piping and other equipment maintenance.

2. Central heating: large heating equipment output line, main line, branch piping.

3. Heat exchangers : Pipe and each loop opening and closing.

4. Steel plant: a variety of liquid pipelines, optional release gas pipelines, gas and heat piping equipment maintenance, fuel equipment maintenance.

5. A variety of industrial equipment: various heat pipes, all kinds of industrial gas and heat pipes
