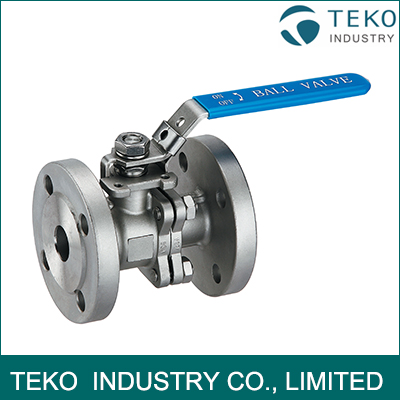

American Market Two Pieces 2PC Flange Ball Valve With PTFE Seat
American Market Two Pieces 2PC Flange Ball Valve With PTFE Seat
- Availability: In Stock
- Product Model: Q41F
$0.00
Ex Tax: $0.00
American Market Two Pieces 2PC Flange Ball Valve With PTFE Seat
Features
- Wrench operator
- Fire safe stem and body graphite seals
- Air tested seat leakage: 85 PSI
- Hydraulic tested body: 1124 PSI
- Locking device comes standard
- 100% leak tested
- Wetted surfaces contain less than .25% lead content
Applied Stanard
- ASME B16.33 (125 PSIG) (2")
- ASME B16.38 (125PSIG) (3"-8")
- CGA 3.16 (125 PSI)
- Conforms to ANSI B16.34
- Flange: ANSI B16.5
- Face to Face: ANSI B16.10
- API 607 Fire Safe
- NACE 01-75 Stainless Steel Approved
Shipping
|
Part # |
Size |
Carton |
Weight |
|
600-228 |
2" |
1 |
28 |
|
600-230 |
3" |
1 |
62 |
|
600-231 |
4" |
1 |
106 |
|
600-232 |
6" |
1 |
225 |
|
600-233 |
8" |
1 |
404 |
