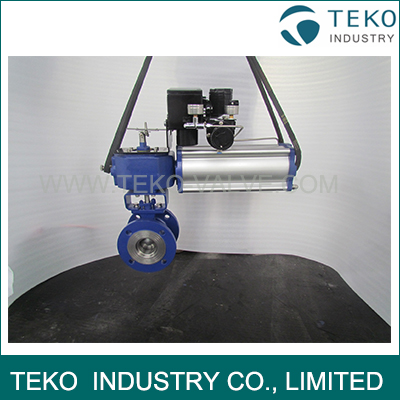

Harden Seated 90 Degree V Shape Flanged Ball Valve With 4-20mA Control

Durable Harden Seated 90 Degree V Shape Ball Valve With 4-20mA Control

Descriptions

The valve ball of the 90 Degree v port ball valve is V-shaped, which can realize linear control and large rangeability. The electric v notch ball valve has a v-notch segment in the ball. When the valve is closed, the v-notch and the valve seat produce a wedge-shaped shearing action, which has both self-cleaning function and preventing the valve ball from being stuck, and is particularly suitable for that occasions of pipeline fouling and freezing.

TEKO v port ball valve is suitable for controlling paper pulp,waste water,suspension medium containing fibrous and granular solids and granular medium. Electric segmented ball valves are widely used in electric power, petroleum, chemical, paper, textile, food, pharmaceutical and other fields.

Features and Benefits

1. 1-PC Body design reducing the leakage.
2. V-segment design providing the large and straight path giving a high Cv even in case of fibers or particles.
3. Trunnion design with self-lubricating bearings making the torque lighter and life cycle longer.
4. V-notch in the segment offering a shearing function to allow fibrous mediums or slurries to pass without any obstruction.
5. Optional seat design meeting many applications.
6. Alternative hard faces satisfying numerous services.
7. Spring-loaded metal seat design providing a lower torque.
8. Removable end-cap making the maintenance easier.
9. Equal percentage flow characteristics.
10. Spline stem design reducing the dead band to optimizes the control performance.
11. Available in flangeless (wafer) of flanged connections.
12. ISO 5211 mounting pad.
13. Anti-static design.
14. Anti-blowout stem design.
