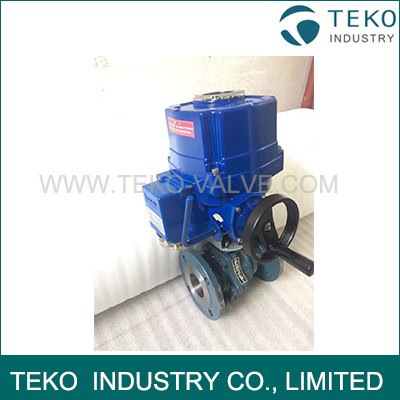

ISO 5211 Mounted Electric Actuated Regulating Control Flanged Ball Valve
ISO 5211 Mounted Electric Actuated Regulating Control Flanged Ball Valve
- Availability: In Stock
- Product Model: Q641F
$0.00
Ex Tax: $0.00
Mounted Electric Actuated Regulating Control Flanged Ball Valve For Chemical Resistant
Quick info
Split Body, stainless steel ASTM A351 - CF8M, flanged ANSI 150 ball valve.
• Full port sizes 1/2” to 8”.
• Blow out proof stem, adjustable stem packing.
• PTFE seats, packing and thrust washer.
• Standard grounded stem and ball.
• 100% tested
• PED 97/23/CE
• Standard locking device.
Flange ANSI B16.5, length ANSI B16.10. - Fire Safe approved API 6FA -
BS 6755/2 - Antistatic BS 5146 - ISO 7121.
Material List
| 1 | BODY | A351 CF8M | 1 |
| 2 | END CONNECTION | A351 CF8M | 1 |
| 3 | BALL | AISI 316 (1/2”- 1”1/2) | 1 |
| STEEL (2” - 8”) | |||
| 4 | STEM | AISI 316 | 1 |
| 5 | SCREW | STAINLESS 1/2”....2” | 4 |
| STEEL 3”....8” | 8 | ||
| 6 | NUT | STAINLESS 1/2”....4” | 2 |
| STEEL 6” - 8” | 1 | ||
| 7 | SPRING WASHER | STEEL | 2 |
| 8 | TRAVEL STOP | AISI 316 | 1 |
| 9 | PACKING GLAND | AISI 316 | 2 |
| 10 | STEM SEAT | PTFE | 1 |
| 11 | HANDLE | AISI 316 | 1 |
| 12 | STEM SEAT | GRAPHITE | 1 |
| 13 | O-RING | Viton | 2 |
| 14 | THRUST WASHER | PTFE | 1 |
| 15 | SEAT | GRAPHOIL | 1 |
| 16 | SEAT | PTFE | 1 |
| 17 | BALL SEATS | PTFE | 2 |
| 18 | SCREW | STAINLESS STEEL | 2 |
| 19 | GROWER | AISI 304 | 2 |
| 20 | SCREW | STAINLESS STEEL | 2 |
| 21 | BODY HANDLE | CAST IRON | 1 |
*Other material are available upon request
Dimensions:
| SIZE | U | D | Y | Z | I | L | M | P | R | A | C | W | H | K | E | F | ØN | B | S |
| 1/2” | 0.59 | 3.5 | 2.38 | Ø0.62x4 | 1.83 | 4.25 | M10X4 | 2.72 | 5.2 | 2 | 0.72 | 1.38 | 0.45&l
