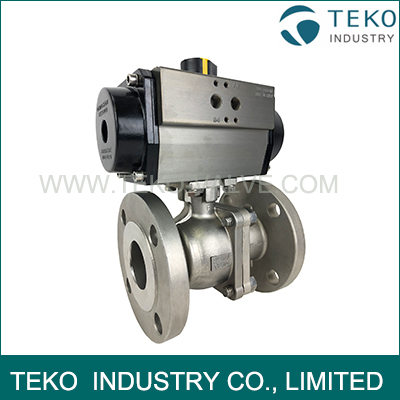

SS Full Bore Flanged 2 PC Pneumatic Actuated Ball Valve

SS Full Bore Flanged 2 PC Pneumatic Actuated Ball Valve
SS Full Bore Flanged 2 PC Pneumatic Actuated Ball Valve
  • Availability: In Stock
  • Product Model: D641F
0 Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Product Inquiry
Add to Wish List Compare this Product

SS Full Bore General Using Flanged 2 PC Pneumatic Actuated Ball Valve



Product Info



Valve Type Actuated Ball Valve
Valve Material Stainless Steel
Body Design 2 PC Full Bore
Seat material PTFE
Pins/Trim Stainless Steel 316
Driven by Pneumatic Actuator
Delivery 15 days after payment





Features & Benefits


• Full Port for unobstructed flow
• Investment cast 2-piece body
• Live-loaded Pyramidal stem seal design
• Blow-out proof stem
• High cycle stem design
• Integrated mounting pad for actuators
• Compact assembly
• Complete line of accessories



Available Actuators


• Pneumatic (spring return)
• Pneumatic (double acting)
• Manual Handle



Construction



Number Item Material
1 Visual Indicator UV Stabilised Thermoplastic
2 Adjustable Stops 316 Stainless Steel
3 Double Acting Pneumatic Actuator Anodized Aluminium
4 Pressure Ports / Namur Interface Anodized Aluminium
5 Chevron Seals Pure Graphite
6 Backing O-ring Viton
7 Thrust Washer Pure PTFE
8 Ball Polished 316 Stainless Steel
9 Seats Pure PTFE
10 Mounting Pad 316 Stainless Steel
11 Body 316 Stainless Steel
12 Flange 316 Stainless Steel
