High Pressure DBB Double Block And Bleed Ball Valve For Oil / Gas
- Availability: In Stock
- Product Model: Q347PPL

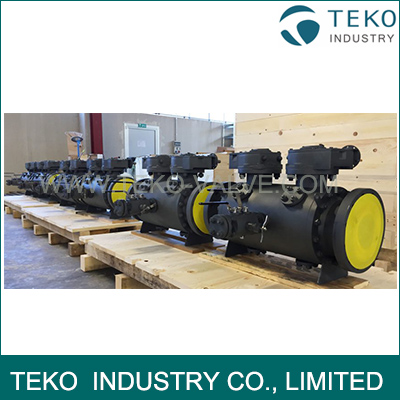

Forged Steel High Pressure DBB Double Block And Bleed Trunnion Ball Valve For Oil & Gas

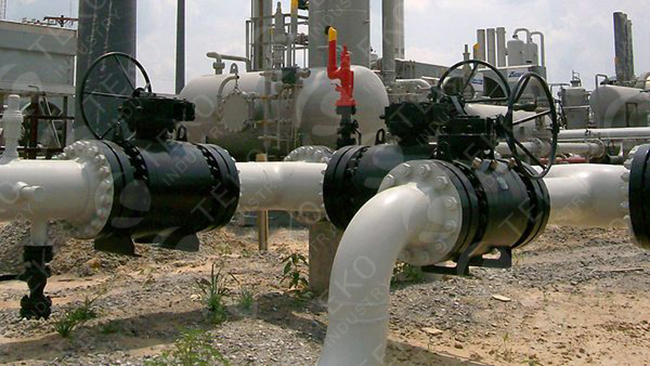

TEKO DBB Ball Valves suitable for Oil & Gas production, processing, transportation, distribution, chemical and petrochemical refining including system isolation, pressure level and flow measurement, instrument drain, chemical injection and sampling for smaller sizes.
GENERAL CONSTRUCTION
TEKO Trunnion ball valves have the obturator bounded by trunnions which do not allow axial displacements of the ball itself in the flow direction; line pressure compresses the seat onto the ball, the contact between surfaces generates the valve sealing; trunnion standard construction ensure automatic cavity relief in case of overpressure in body cavity; these valves can be selected for a wide range of applications with no specific limits to sizes and pressures. Erreesse modular double block & bleed (DBB) valves are engineered and manufactured to provide a compact and reliable alternative to multiple instrument valve systems, reducing leak paths and saving installations and maintenance costs.
STANDARD FEATURES
|
Construction |
Two or Three piece bolted body |
|
Port |
Reduced bore, full bore or fully piggable |
|
Stem retention |
Anti blow-out stem |
|
Leakage rate |
ISO 5208 rate A soft seated, rate D metal seated |
|
Antistatic device |
Included, the ball valve design includes an electric conductive connection between the internal parts of the ball valve and the body, providing the anti-static function. |
|
Pressure relief |
Automatic cavity relief to prevent overpressure in body cavity (self-relieving seats) |
|
Sealing |
Bi-directional, Double block & bleed (DBB) with sealing in both directions (DIB-1&2 upon request) |
|
Drain |
Drilled and threaded connections for all sizes |
|
Vent |
Drilled and threaded vent connections for sizes ≥ DN150 (6") < DN150 upon request |
|
Stem grease injectors |
Included for all sizes |
|
Seat grease injectors |
Included for sizes ≥ DN150 (6"), < DN150 upon request |
|
Lifting points |
Included for sizes ≥ DN150 (6") or on valves of 250 kg min |
|
Support feet |
Included for sizes ≥ DN150 (6") or on valves of 250 kg min |
|
Stem extension |
Not foreseen for this model |
|
Valve operation |
Lever, Gear box or Actuator with position indicator and locking device |
|
Material testing |
Pressure containing & controlling parts to EN 10204 3.1 |
|
Valve testing |
Hydrostatic & pneumatic testing to API 6D, ASME B16.34, ISO 5208 (other upon request) |
TECHNICAL DATA
|
Design |
API 6D, API 6A, ASME B16.34, ISO 14313, ISO 10423, ISO 17292 |
|
Design pressure |
ASME B16.34, EN 1092-1, ISO 17292 |
|
Body wall thickness |
ASME B16.34, ASME VIII Div. I, ISO 17292 |
|
Face to Face |
API 6D, ASME B16.10 Long pattern |
|
Temperature range |
-50° to 200°C (-58° to 392°F) |
|
Pressures range |
PN20 (ANSI 150) to PN420 (ANSI 2500) |
|
Size range |
DN15 (1/2") to DN1800 (72") |
|
End connections |
ASME B16.5 ≤ DN600 (24") Flanged RF,FF,RTJ |
MATERIALS OF CONSTRUCTION
Low Temperature and Low Alloy Carbon Steel
Stainless steel, Duplex and Super Duplex
Nickel alloys
Titanium
