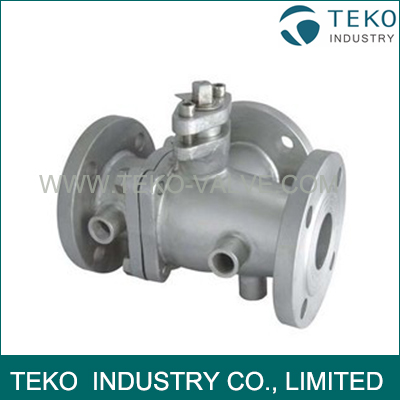

Bitumen Asphalt 3 Way Jacketed Ball Valve
Bitumen Asphalt 3 Way Jacketed Ball Valve
- Availability: In Stock
- Product Model: BQ45F
$0.00
Ex Tax: $0.00
Bitumen Asphalt 3 Way Jacketed Ball Valve
Specifications:
1)Material:Stainless Steel, WCB, A105 etc
2)Size rating:1/2"~4"
3)Working Pressure: Class 150~600 Lb
4)Design Standard: API
5)Suitable temperature: -20°F---400°F (-29°C- 200°C)
6)Face To Face Standard:ANSI B16.10
7)FLANGE END STD:ANSI B 16.5
Material List
|
No. |
Part Name |
Material |
|
1 |
Body |
WCB |
|
2 |
Jacket |
A3 |
|
3 |
Seat |
F304 |
|
4 |
Ball |
F304 |
|
5 |
Gland Plate |
WCB |
|
6 |
Stem |
2Cr13 |
|
7 |
Packing |
Graphite |
|
8 |
Gland |
WCB |
|
9 |
Lever |
Cast Iron |
Features:
1)Investment casting
2)Blowout proof stem
3)Anti-Static Design

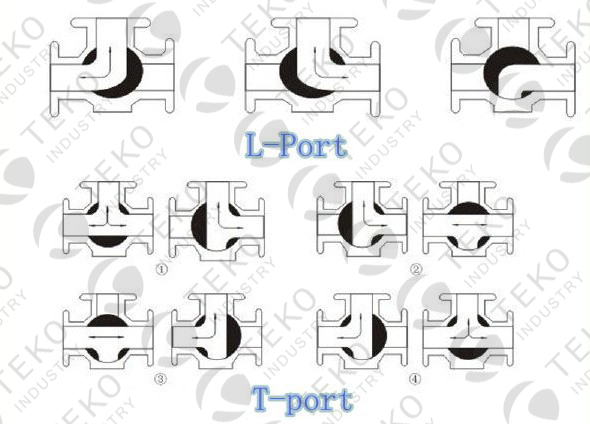

Port Directions
