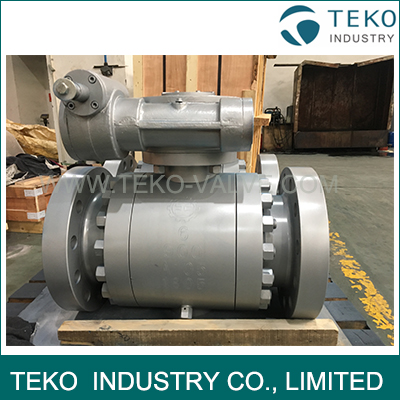

ANSI API6D Forged Steel Flange End Worm Gear Operated Trunnion Ball Valve For Oil & Gas

0 Write a review

$0.00

Ex Tax: $0.00

Qty

Add to Cart

Product Inquiry

Add to Wish List Compare this Product

ANSI API6D Forged Steel Flange End Worm Gear Operated Trunnion Ball Valve For Oil & Gas

Specifications

1.Material	A105 or as your request
2.Size	1/2"~48"
3.Pressure	150LB ~ 2500LB
4.Logo	OEM Available
5.MOQ	1pcs
6.OEM Accepted	Yes
7.Certification	Yes
8.Production Capacity	200 tons per month
9.Payment Term	L/C,T/T,D/P,D/A,PAYPAL,WESTERN UNION,MONEY GRAM

Construction is as follows:

- Full Port or Reduce Port

- One Piece or Split Body

- Bolted Bonnet with spiral-would gasket

- Fire Safe Design

- Anti-static Design & Blow-out proof stem

- Socket Weld Ends to ASME B16.11

- Butt Weld Ends to ASME B16.25

- Screwed Ends to ANSI/ASME B1.20.1

- Flanged Ends to ASME B16.5

Main Materials

Part Names	Part Materials
Body	WCB/A105	LCB/LF2	WC6/F22	CF8/F304	CF8M/F316	CF3/F304L	CF3M/F316L
Bonnet	WCB/A105	LCB/LF2	WC6/F22	CF8/F304	CF8M/F316	CF3/F304L	CF3M/F316L
Disc/Ball/Wedge	A105	SS304	WC6/F22	SS304	SS316	SS304L	SS316L
Stem	A105	F304	F6a	F304	F316	F304L	F316L
Seat/Seat Ring	PTFE/RPTFE/NYLON/DEVLON/PEEK or METAL
Packing	Graphite/PTFE
Gasket	SS304+Graphite/SS304+Graphite
Bolts/Nuts	B7/2H	L7/4	B16/4	B8/8	B8M/8M	B8/8	B8M/8M
Suitable Medium	W.O.G etc.			HNO3, CH3OOH etc.
Suitable Temperature	-29~425 °C	-46~340 °C	-46~340 °C	-196~427 °C	-196~427 °C	-196~427 °C	-196~427 °C
