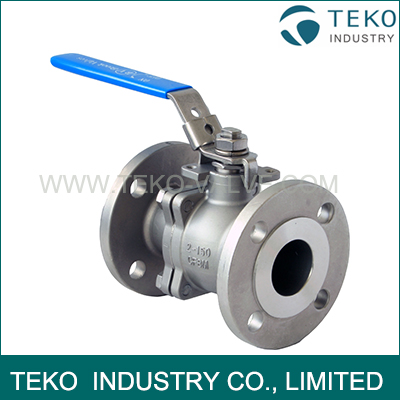

ASME 150LB 300Lb Fire Safe Bubble Tight Two Way Flanged Ball Valve
- Availability: In Stock
- Product Model: Q41F
ASME 150LB 300Lb Fire Safe Bubble Tight Two Way Flanged Ball Valve
Specifications:
1)Material:ASTM A105, F304L, F316L
2)Size rating:NPS 1/2"-8"
3)Working Pressure:CLASS 150~600 LB
4)Design Standard:API608/BS5351/API 6D
5)Face To Face Standard:ASME B16.10
6)Flange End Standard: ANSI B 16.5
7)Test Standard:API 598
8)Fire Safe, Anti-static and Blow-out Proof Stem
9)Full Port or Regular Port
Material List of Flange End Ball Valve
|
No. |
Parts Name |
Material |
|
1 |
Body |
ASTM A105 |
|
2 |
Gasket |
PTFE |
|
3 |
Seat |
R-PTFE |
|
4 |
Ball |
SS 304 |
|
5 |
Steel Ball |
SS 304 |
|
6 |
Anti-Static Spring |
SS 304 |
|
7 |
Stem |
ASTM A182 F6a |
|
8 |
Gasket |
PTFE |
|
9 |
Packing |
PTFE |
|
10 |
Plate |
AISI 1045 |
|
11 |
Nut |
ASTTM A193 Gr.B7 |
|
12 |
Nut |
ASTM A194 Gr.2H |
|
13 |
Lever |
ASTM A216 Gr.WCB |
|
14 |
Gauge Blcok |
AISI 1010Zinc-coated |
|
15 |
Bushing Gasket |
AISI 1045 |
|
16 |
Nut |
ASTM A194 Gr.2H |
|
17 |
Gland |
SS 304 |
|
18 |
Gland Bushing |
ASTMA276 410 |
|
19 |
Bonnet |
ASTM A105 |
|
20 |
Stud |
ASTM A194 Gr.2H |
|
21 |
Nut |
ASTTM A193 Gr.B7 |
Fireproof Structure Design

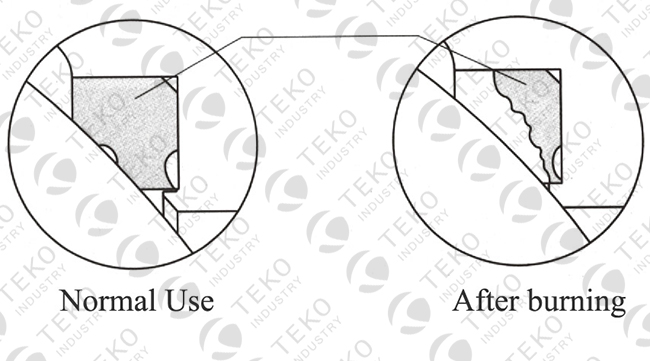

In case of fire during the use of valve, the seat ring made of PTFE or other non-metal material be decomposed or damaged under high temperature and cause higher leakage. The fire proof of seal ring is et between ball and seat so that after the valve seat is burnt out, the medium will push the ball rapidly towards the downstream metal seal ring to from the auxiliary metal-to-metal sealing structure which can effectively control valve leakage. In addition, the middle flange sealing gasket, which can ensure sealing even under high temperature. The fireproof structure design of floating ball valve conforms to requirements of API 607, API6FA, BS 6755.

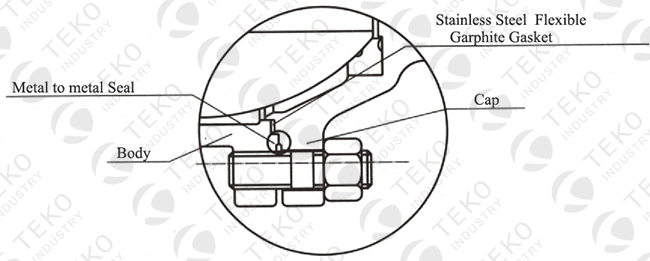

Fire proof Structure of Middle flange
