NPT Threaded Angle Seat Valve
Your Review: Note: HTML is not translated!
Rating: Bad Good
Enter the code in the box below:

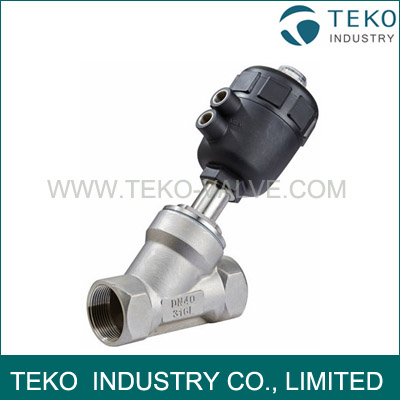

NPT Threaded Angle Seat Valve, Pneumatic Seat Valve
Technical Data
Pressure range: 0-16 bar
Medium Temp: -20℃…+180℃
Ambient Temp: -20℃…+60℃
Body Material: Stainless Steel
Sealing Material: PTFE
Actuator Material:PA
Medium: Neutral gas, Air, Water
Applications
*Cooling
*Pre-heating
*Sterilizers and autoclaves
*High pressure lubrication
*Steam distribution
*Bottling
*Equipment for textile production
*Equipment for industrial steam pressing
*Mixing of paints, inks and colors
*Equipments for industrial washing and cleaning
Options
Control functions: Normally Closed, Normally Open, Double Acting
Connection: Thread, Tri-damp, Weld, Flanged
Limit switch, manual override devices, and solenoid valve upon request
