Stainless Steel Spring Loaded Safety Valve

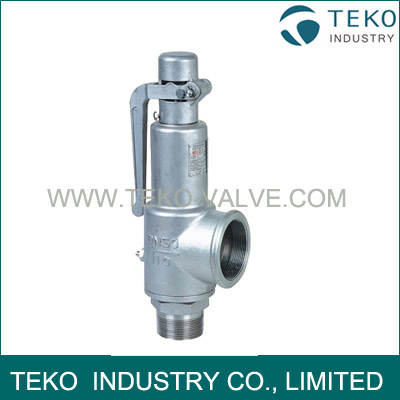

A28H Stainless Steel Spring Loaded Safety Valve is used for the equipment and pipeline of the air, steam, water, mixture gas vapor of N2&H2 and other medium, with working temperature less than 200℃.
Stainless Steel material is used for corrosive medium less than 200℃.
Material List:
| NO. | Parts Name | Material (A28H) |
Material (A28W-P) |
Material (A28W-R) |
| 1 | Body | WCB | ZG1Cr18Ni9Ti | CF8M |
| 2 | Nozzle | 35 | ZG1Cr18Ni9Ti | CF8M |
| 3 | Adjusting Ring | ZG2Cr13 | 1Cr18Ni9Ti | 316 |
| 4 | Disc | 2Cr13 | 1Cr18Ni9Ti | 316 |
| 5 | Spring | 50CrVA | 50CrVA Coated PTFE | 50CrVA Coated PTFE |
| 6 | Stem | 2Cr13 | 2Cr13 | 316 |
| 7 | Adjusting Bolt | 45 | 2Cr13 | 316 |
| 8 | Cap | ZG200-400 | ZG200-400 | CF8M |
