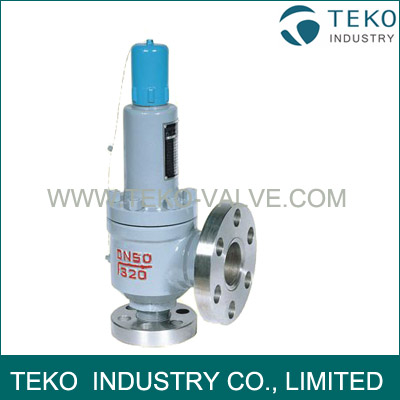

Spring Loaded Safety Valve
A41H Type Spring Loaded Safety Valve are used for the equipment and pipeline of the petroleum gas, air, water etc medium what the working temperature are less than 300℃. Stainless Steel type are used for the equipment and pipeline of the quality with corrosive medium with working temperature less than 200℃.
Material List:
| NO. | Parts Name | Material (A41H-C/KA41Y-C) |
Material (A41Y-P/KA41Y-P) |
Material (A41Y-R/KA41Y-R) |
| 1 | Body | WCB | ZG1Cr18Ni12Mo2Ti | ZG1Cr18Ni12Mo2Ti |
| 2 | Nozzle | 2Cr13/CF8 | ZG1Cr18Ni12Mo2Ti | ZG1Cr18Ni12Mo2Ti |
| 3 | Adjusting Ring | 2Cr13/CF8 | ZG1Cr18Ni12Mo2Ti | ZG1Cr18Ni12Mo2Ti |
| 4 | Disc | 2Cr13/CF8 | ZG1Cr18Ni12Mo2Ti | ZG1Cr18Ni12Mo2Ti |
| 5 | Guide Sleeve | 2Cr13/CF8 | 1Cr18Ni12Mo2Ti | 1Cr18Ni12Mo2Ti |
| 6 | Bonnet | ZG230-450 | ZG230-450 | ZG230-450 |
| 7 | Spring | 50CrVA | 50CrVA Coated PTFE | 50CrVA Coated PTFE |
| 8 | Stem | 2Cr13 | 1Cr18Ni12Mo2Ti | 1Cr18Ni12Mo2Ti |
| 9 | Adjusting Bolt | 45 | 2Cr13 | 2Cr13 |
| 10 | Cap | ZG200-400 | ZG200-400 | ZG200-400 |
