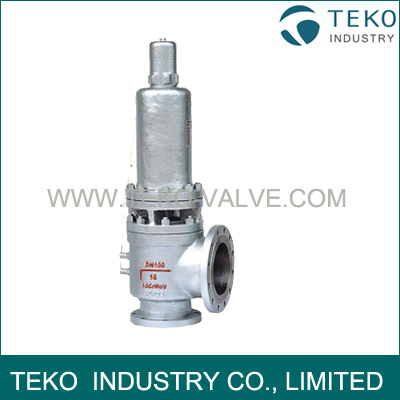

High Temperature Safety Valve with radiator
A40Y-C High Temperature Safety Valve with radiators used from the equipment and pipeline of the air N2, H2 mined gas and other medium with working temperature less than 400 ℃. Stainless Steel type is used for equipment and pipeline of corrosive medium with temperature less than 300 ℃. It is taken as an extra pressure protection devices..
Material List:
| NO. | Parts Name | Material | Material | Material |
| (A40Y-C) | (A40Y-P) | (A40Y-R) | ||
| 1 | Body | WCB | ZG1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 2 | Nozzle | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 3 | Adjusting Ring | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 4 | Disc | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 5 | Guide Sleeve | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 6 | Radiator | ZG230-450 | ZG230-450 | ZG230-450 |
| 7 | Bonnet | ZG230-450 | ZG230-450 | ZG230-450 |
| 8 | Spring | 50CrVA | 50CrVA Coated PTFE | 50CrVA Coated PTFE |
| 9 | Stem | 2Cr13 | 1Cr18Ni9Ti | 2Cr13 |
| 10 | Adjusting bolt | 45 | 1Cr18Ni9Ti | 2Cr13 |
| 11 | Cap | ZG200-400 | ZG200-400 | ZG200-400 |
