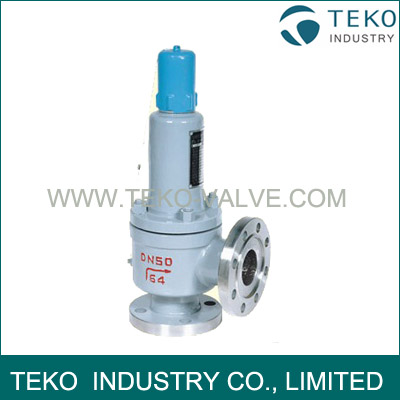

High Pressure Safety Valve
A42Y High pressure safety valve is used for equipment and pipeline of the air, N2, H2 mixed gas, and similar medium with working temperature less than200 ℃. A42Y-P Stainless steel type is used for equipment and pipeline of corrosive liquids with working temperature less than200 ℃. It takes as an extra pressure protection devices.
Material List:
| NO. | Parts Name | Material (A42Y-160/A42Y-320) |
Material (A42Y-160P/A42Y-320P) |
Material (A42Y-160R/A42Y-320R) |
| 1 | Flange | 35CrMoAi | 2Cr13 | 1Cr18Ni12Mo2Ti |
| 2 | Nozzle | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 3 | Body | 40 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 4 | Adjusting Bolt | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 5 | Disc | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 6 | Disc Holder | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 7 | Guide Sleeve | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 8 | Bonnet | ZG230-450 | ZG230-450 | ZG230-450 |
| 9 | Stem | 2Cr3 | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
| 10 | Spring | 50CrVA | 50CrVA Coated PTFE | 50CrVA Coated PTFE |
| 11 | Adjusting bolt | 45 | 2Cr13 | 2Cr13 |
| 12 | Cap | ZG200-400 | ZG200-400 | ZG200-400 |
