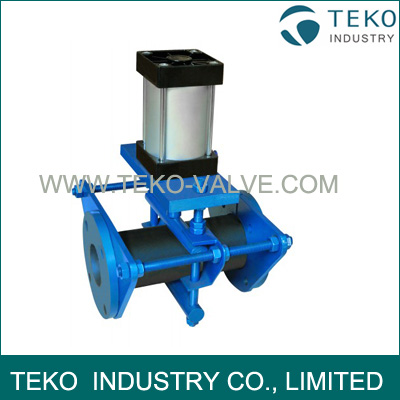

Open Body Pinch Valve, Pneumatic Pinch Valve
Open Body Pinch Valve, Pneumatic Pinch Valve
- Availability: In Stock
- Product Model: GJ4X
$0.00
Ex Tax: $0.00
Open Body Pinch Valve, Pneumatic Pinch Valve
Working Principle
The upper and bottom disc are moving toward each other to closed the sleeve when rotating the handwheel. Because the rubber sleeve can not bear too much strength, the valve reach closing position when the disc is contacted. No need to close the valve too tight.
Structure
The valve consists of body, sleeve, disc, guide pin and other parts.
Part Material
|
Body |
Sleeve |
Stem |
Disc,Handwheel |
Bracket |
|
Aluminum Alloy Cast iron |
Rubber,EPDM |
WCB, Brass |
Cast Iron |
Ductile Cast Iron |
Technical Data
|
Nominal Diameter |
Nominal Pressure |
Suitable Temperature |
Suitable Medium |
|
DN25~300 |
0.6MPa |
Natural Rubber:≤80 ℃ |
Ore Pulp, Grinding Material, Wet & Dry Dust |
| EPDM Rubber:≤120 ℃ |
