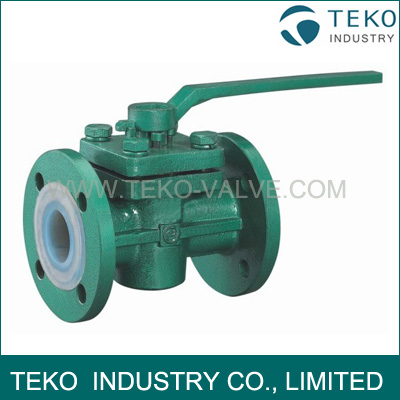

Full Lined Plug Valve
Full Lined Plug Valve
- Availability: In Stock
- Product Model: X43F46
$0.00
Ex Tax: $0.00
Fluorine Lined Plug Valve
Specifications:
1)Material:WCB Lined PTFE
2)Size rating:NPS 1/2"~20"
3)Working Pressure:Class 150 Lb, JIS 10K
4)DESIGN Standard:GB 12240
5)FACE TO FACE Standard:ASME 16.10, GB12221
6) Flange End:ANSI B16.5a, JB78/79
7)TEST Standard:API 598, GB/T12252
Material List:
| NO. | Parts Name | Material | |||
| Cast Iron | WCB | CF8 | CF8M | ||
| 1 | Body,Bonnet | HT250 | WCB | CF8 | CF8M |
| 2 | Plug | WCB 35#, Monel, CF3, CF3M | |||
| 3 | Liner,Seat, Sleeve | PTFE, PCTFE, FEP, PFA, PVDF, PPL | |||
| 4 | Packing | PTFE | |||
| 5 | Handle | 35#/EP.Cr | |||
