Reduced Bore A351 1/2" PTFE Lined Valves For Chemicals

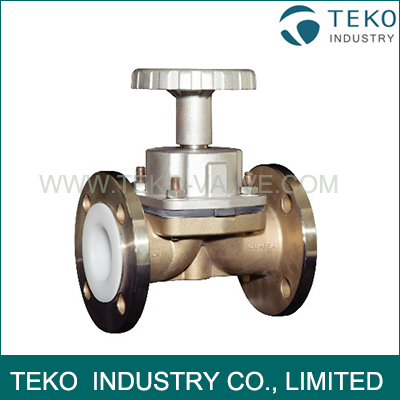

Reduced Bore PFA Lined Weir Type Diaphragm Valves For Chemicals

Description

• PFA (Fluoropolymer) Liner introduction
• Available dimensions: 1/2" to 4" / 15A~100A
• Operating temperature: -30oC to +120oC
• Stem machined of 316 material
• Body, bonnet and compressor of precision casting material
• PFA lining fluoroplastics
• Stem protected by NBR/ VITON O-ring
• 15KV spark testing
• PFA diaphragm combined with high strength EPDM diaphragm

Features

• Available for working in occasions of corrosive gas
• Investment casting stainless steel lined with PFA (perfluoroalkoxy) with the transfer molding method to reach long-term service life.
• Simple design of stem facilities the maintenance.

Applications

PFA lined diaphragm valves apply for high corrosive fluid, as following applications,

• Chemical plant
• Rare earth
• Pesticide
• Pharmaceutical Manufacturing
• Paper making industry
• Corrosive Petrochemical
• Dyeing and finishing plant
• Solar panel industry
• Petrochemical industry
• Pharmaceutical industry

Dimensions
