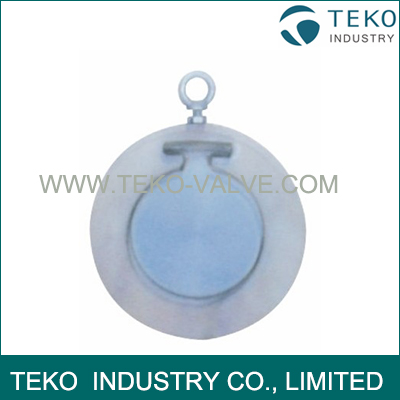

Wafer End PTFE Lined Valves , Chemical Short Pattern Swing Type 2 Inch Valve
Wafer End PTFE Lined Valves , Chemical Short Pattern Swing Type 2 Inch Valve
- Availability: In Stock
- Product Model: H76F
$0.00
Ex Tax: $0.00
Wafer End Short Pattern Swing Type PTFE Lined Valve For Chemical Process
Features
- Short Patter Length, save the installation space for the end-user
- Fully encapsulated one-piece disc/hinge assembly
- Robust design, durable, high cycle performance
- DN 50 to DN500 are available
- Body would be stainless steel+ MIN. 3mm PFA/PTFE/PVDF/FEP liners
- 100% spark test for all the wetted parts.
- Virgin fluorine Plastic
Working Temperature of different liner
| Material | Temperature Range (℃) |
| PFA | -29 to 180 |
| FEP | -29 to 120 |
| PVDF | -20 to 100 |
| PTFE | -29 to 200 |

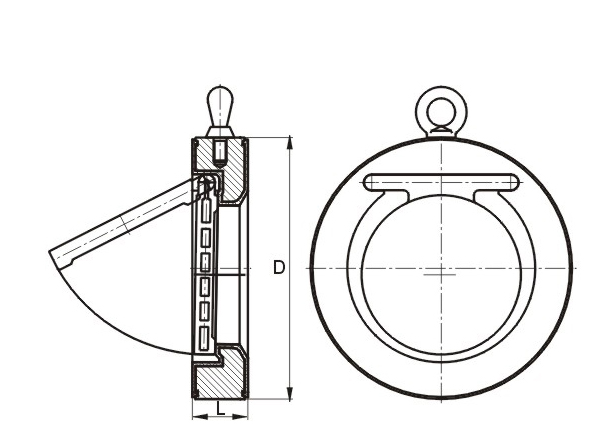

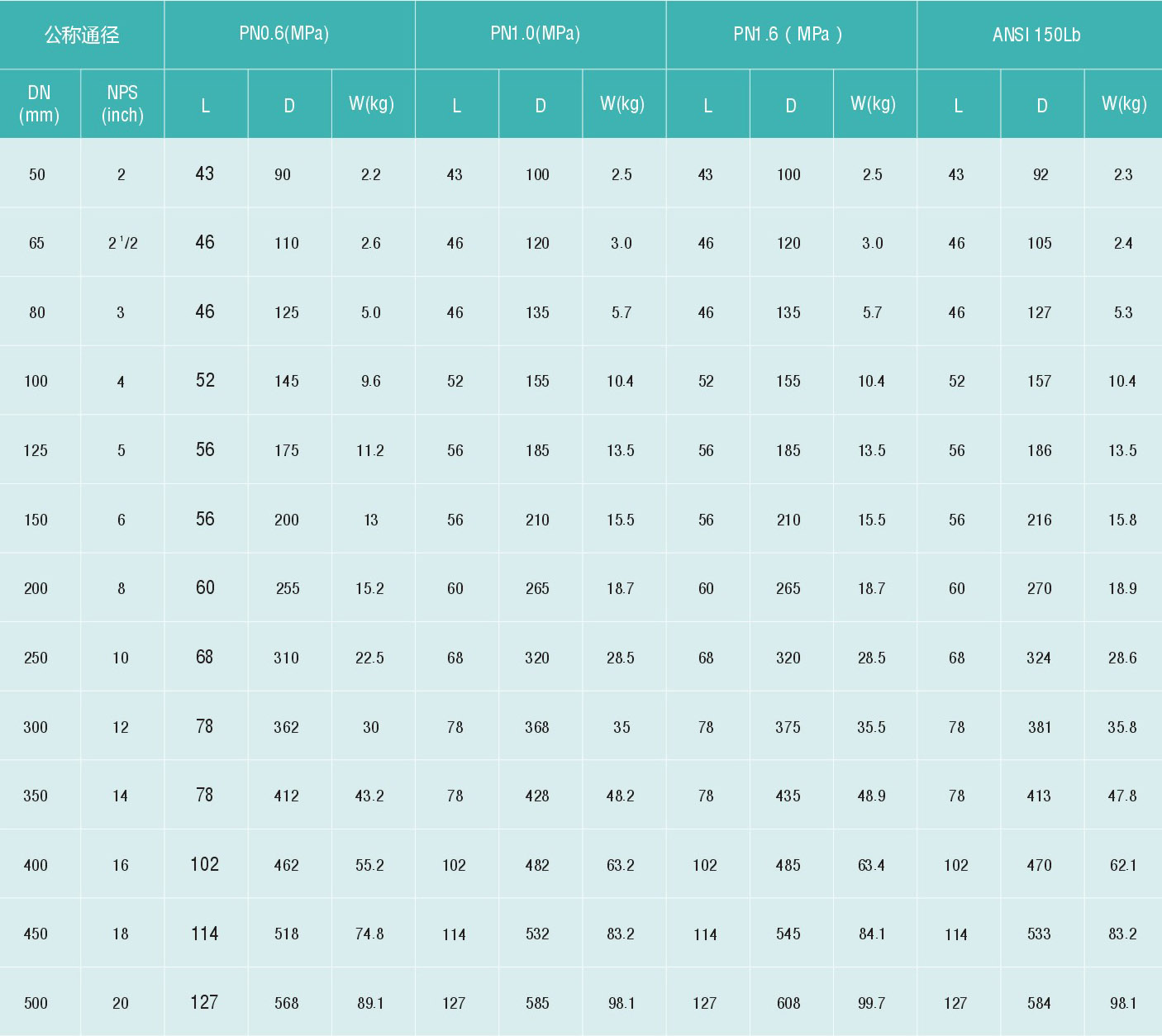

Dimensions
