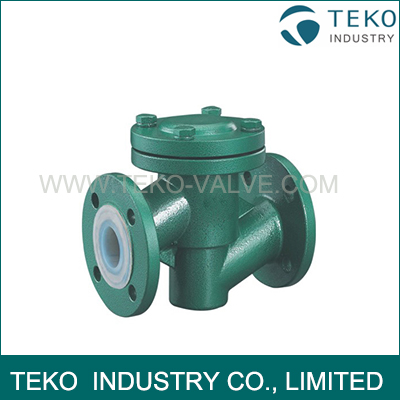

Acid Resisitant Vertical Lift Non Return Valve
Acid Resisitant Vertical Lift Non Return Valve
- Availability: In Stock
- Product Model: H41F4
$0.00
Ex Tax: $0.00
Acid Resisitant Vertical Lift Non Return Valve
1.Technical Data:
(1) Nominal Diameter DN(mm):DN15~DN300
(2) Nominal Pressure PN(MPa): PN10-PN16
(3) Testing Pressure PN(MPa): Shell: 1.5~2.4 Sealing: 1.1~1.76
(4) Suitable Mediums: Aggressive Liquid or gas
(5) Working Temperature: 0~+150°C

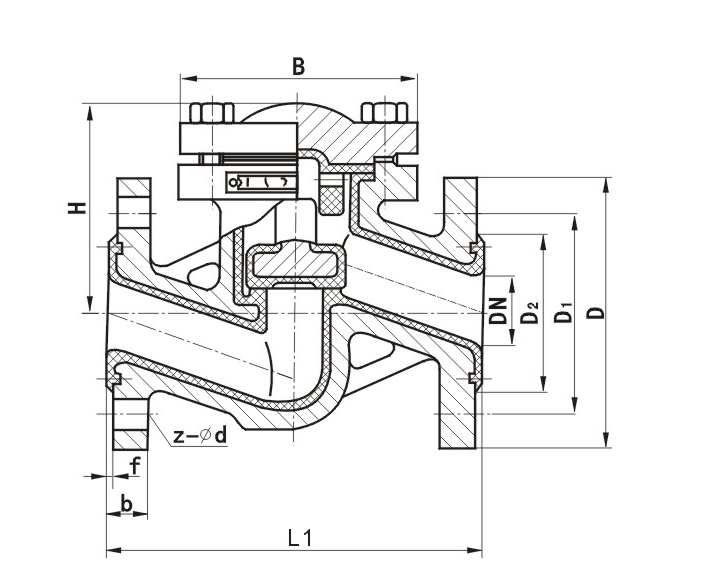

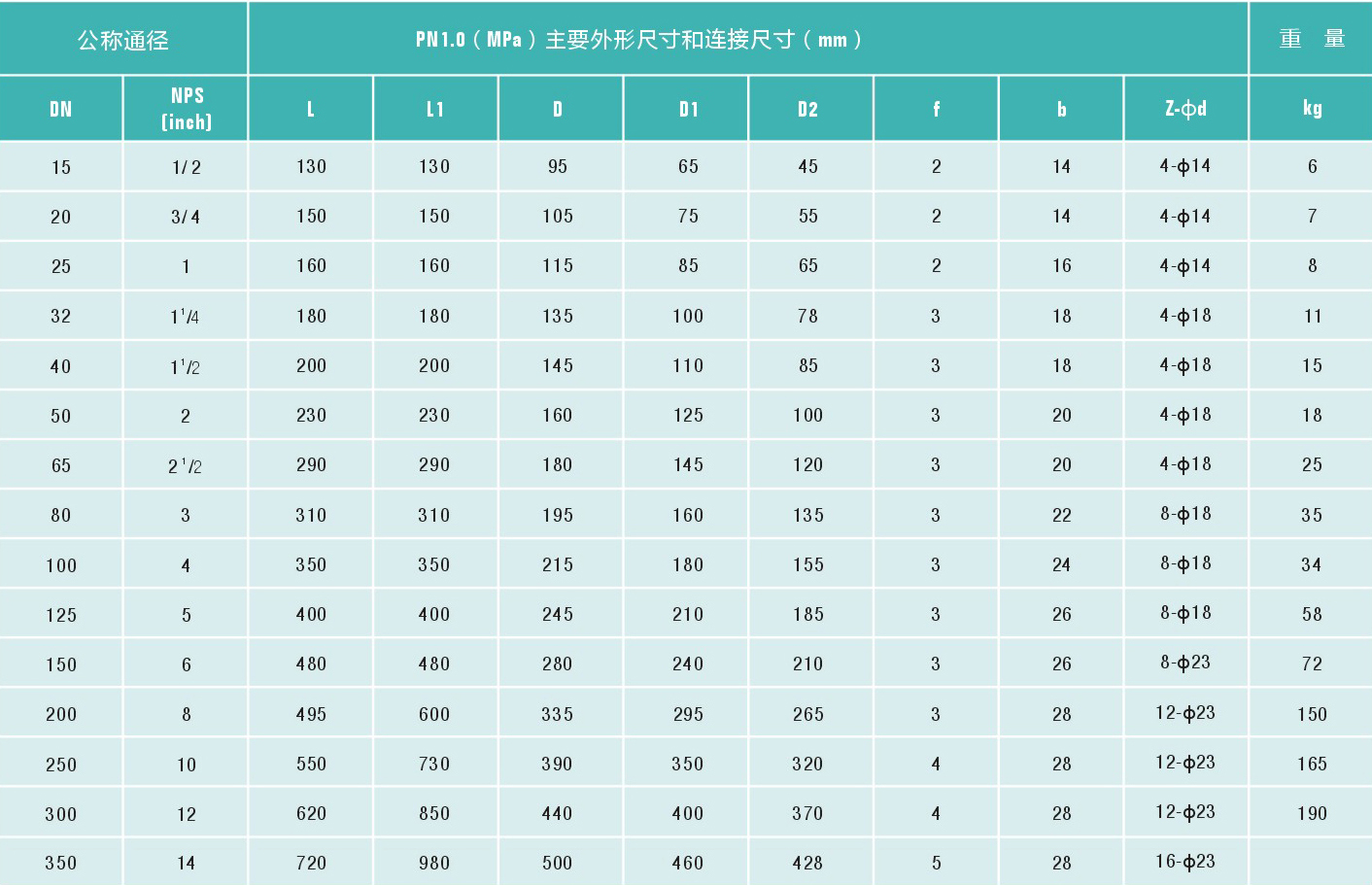

Part Material & Dimensions
|
Part Name |
Body |
Disc |
Shaft |
Lining |
Bolts/nuts |
|
Material |
Carbon Steel |
Covered FEP |
Stainless Steel 304 |
FEP |
Steel |
